Description

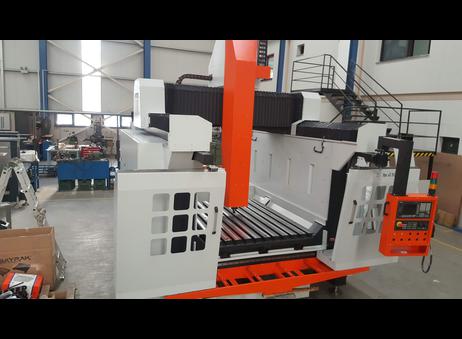

HTMAK Hypertechmac HTM 201512 – Year 2019
| X Axis | 1500 mm |
|---|---|
| Y Axis | 2000 mm |
| Z Axis | 1250 mm |
| CNC type | Siemens |
| Table length | 2000 mm |
| Table width | 1500 mm |
| Max load on table | 5000 kg |
| Spindle taper | bt40 |
| Max. spindle speed | 24000 rpm |
| Spindle motor power | 11 kW |
| Overhauled | no |
| Length x width x height | 4800.0 × 3400.0 × 5000.0 |
| Weight | 12000 kg |
| Worked hours | 300 hours |
| Hours under power | 600 hours |
| State | excellent |
Machining Dimensions : X-1500 Y-2000 Z-1250 mm
Motion Motors : X-1,5 Kw Y-1 Kw Z-1,5Kw Siemens Servo motor
Movement System : X- 2 Module Helical Ground Y- 2 Module Helical Ground Z-40×10 ball screw
Spindle Motor : 9-12 Kw 24000rpm HSK F63 or BT40 8000rpm
Lubrication System : Central automatic lubrication system
Bellows
Machine parts are protected by a bellows system.
Control Board
Siemens control unit
