Description

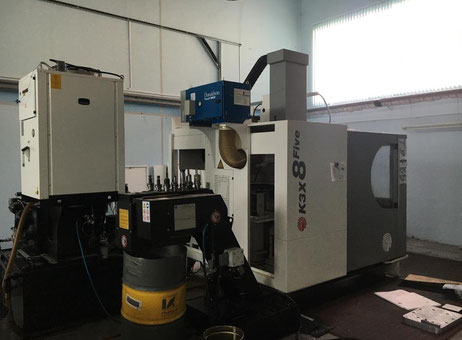

Huron K3X8 – Year 2012
| Axis X | 780 mm |
|---|---|
| Axis Y | 700 mm |
| Axis Z | 500 mm |
| CNC | Heidenhain |
| Max. part weight | 250 kg |
| Number of tool pockets | 30 |
| Max. spindle speed | 16000 rpm |
| Spindle motor power | 50 kW |
| Length x width x height | 2690.0 × 4710.0 × 3320.0 |
| Weight | 9700 kg |
| Worked hours | 5700 hours |
| Hours under power | 13100 hours |
| State | good |
Designed to perform 5-axis high-speed milling of complex parts, such as injection molds, aircraft parts or precision mechanics parts. The combination of dynamics and accuracy allows to obtain high quality of the processed surface.
X / Y / Z linear displacements
• along the X 780 mm axis
• Y axis 700 mm
• Z axis 500 mm
50 m / min fast delivery
Acceleration on an axis of 5 m / s2
Vector acceleration 9 m / s2
Rotary table
Table on an inclined plane under 55 °
Table size Ø500 mm
Permissible load 250 kg
Max. workpiece size Ø700 mm, height 280 mm
Axis A
• tilt + 30 ° / -180 °
• speed of 50 rpm.
• indexing resolution 0.001 °
• Torque: working / clamping 872/1630 N * m
C axis
• rotation (continuous rotation) 360 °
• rotational speed 50 rpm
• indexing resolution 0.001 °
• Torque: working / clamping 554/990 N * m
Spindle
Rotational speed 16.000 rpm
Spindle taper HSK 63-A
Power 36/22 kW
Torque 98/60 N * m
Accuracy K3X 8 Five
X / Y / Z linear axes
Positioning 0.004 mm
Repeatability 0.002 mm
A / C steering axles
Positioning 7.2 seconds
3.6 sec repeatability
Instruments
The number of cells in the store 30 pcs.
Max. tool length 250 mm
Max. tool diameter 90 mm
Maximum tool weight 7 kg
Tool change time 5-15 seconds
Cooling system
Internal coolant yes
Tank capacity 230 l
General characteristics
Machine weight 9.700 kg
Length 2.690 mm
Width 4.710 mm
Height is 3.320 mm
Power consumption 50 kW
