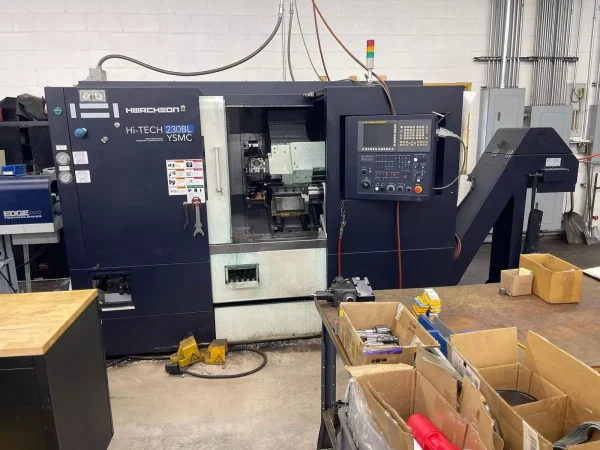

Hwacheon Hi-Tech 230BL YSMC CNC Turning Center – Year 2018
Bar Feeder, Y Axis, C Axis, Sub-Spindle
SPECIFICATIONS:
Control: Fanuc i Series Control
Chuck sizes: 10″ Main Spindle/6″ Hyd on Subspindle
Maximum swing/over carriage: 29.55″ / 15.76″
Maximum cutting diameter: 15.76″
Maximum cutting length: 22.06″
X-axis travel: 9.456″
Y-axis travel: 4.728″
Z-axis travel: 27.58″
B-axis travel (subspindle): 26.18″
Spindle nose / spindle bore / bar capacity:
A2-8″ / 3.58″ / 3.19″
Spindle speed / sub spindle speed:
3,500 RPM / 5,000 RPM
Spindle motor / sub spindle motor:
25 HP / 10 HP
Rotary tool speed / rotary motor:
4,000 RPM / 7.4 HP

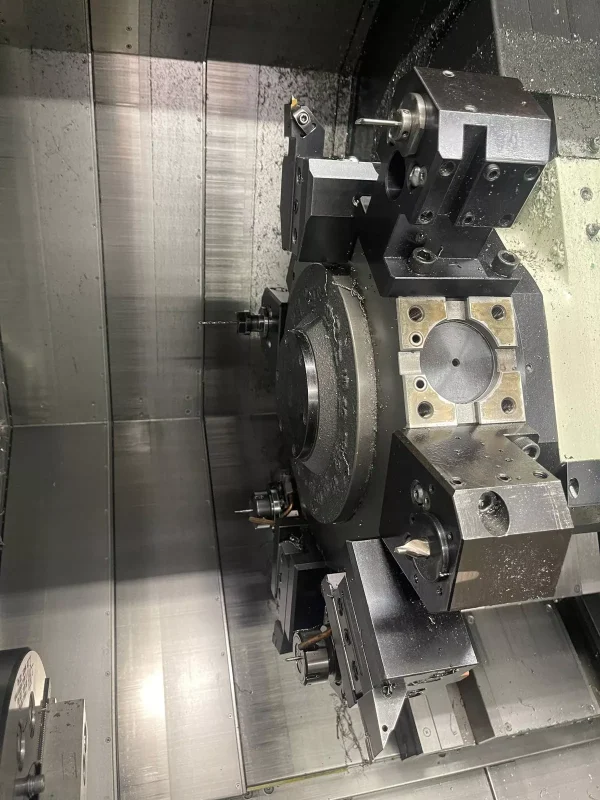

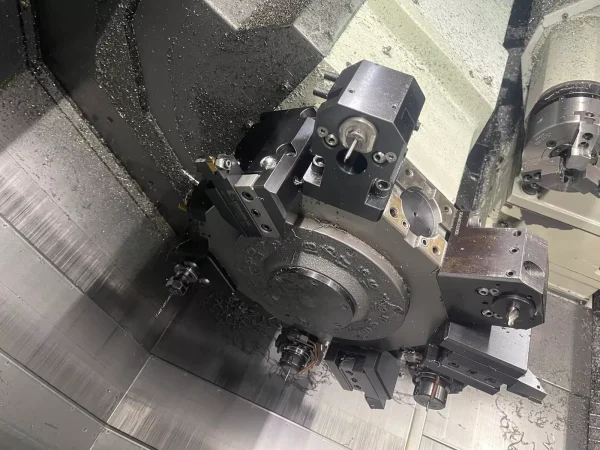

turret positions:12 Sided / 24 Stations
Rapid traverse rates x, b / z:
1182 IPM, 945 IPM / 1182 IPM
Machine dimensions:
116″ x 74″ x 73″ approx.
Machine weight:
12,500 lbs. approx.
Equipped with:
Y Axis Capability (Off Center)
Subspindle
C Axis Spindle Rotation

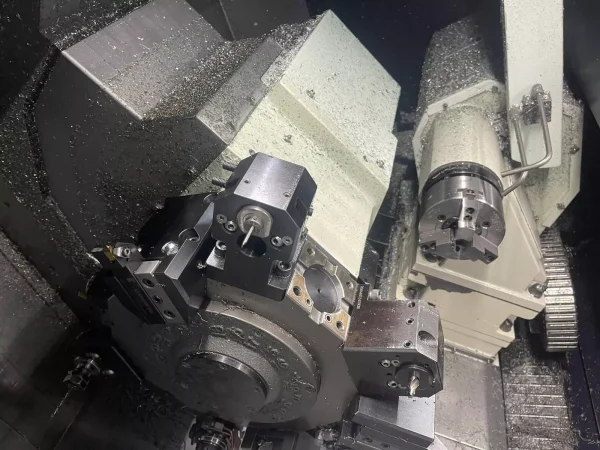

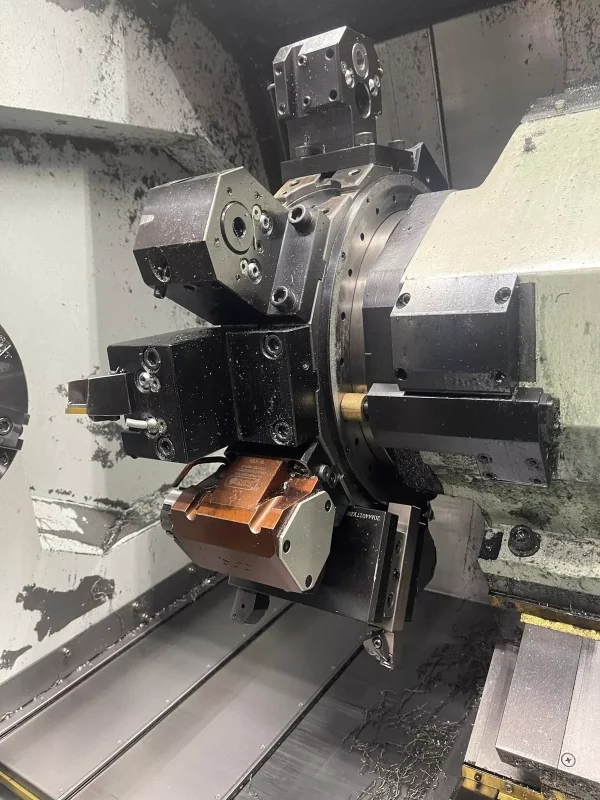

Live Milling / Drilling Capability

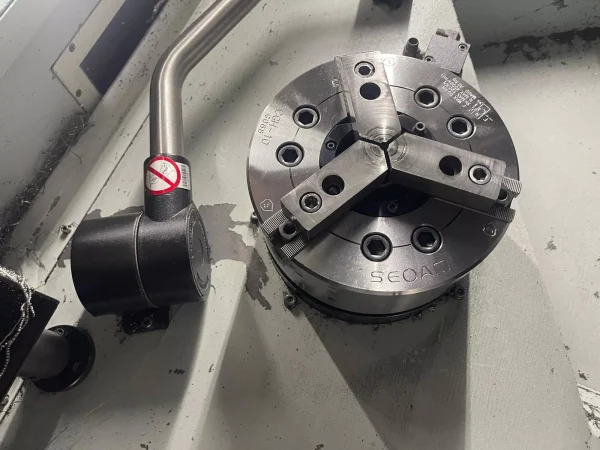

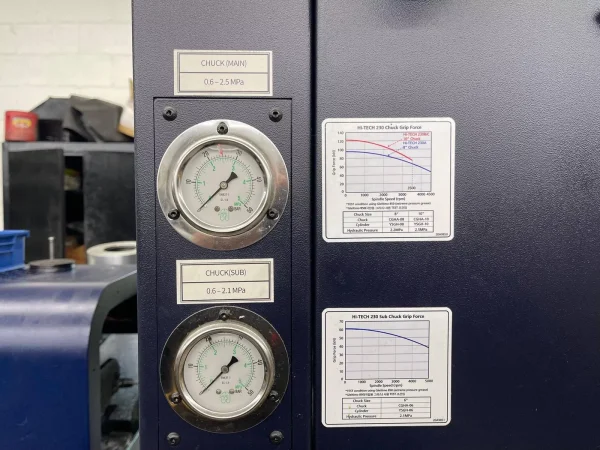

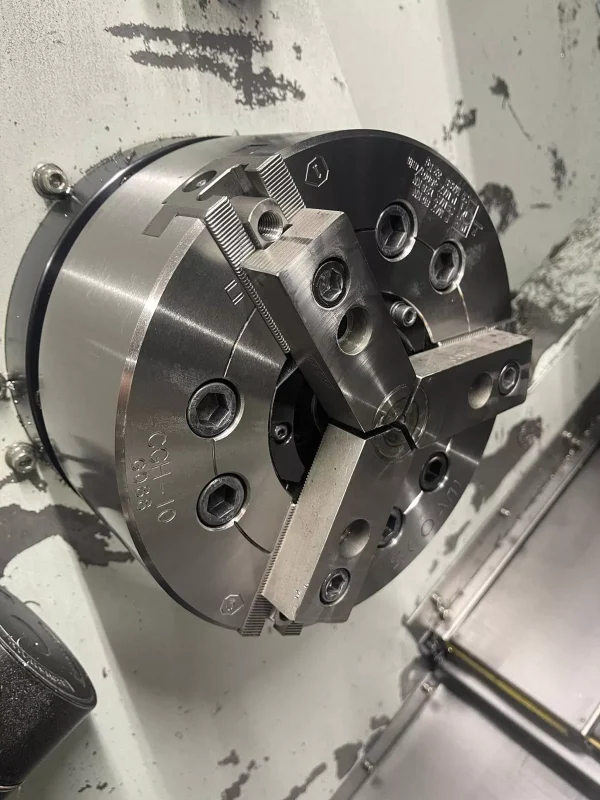

10″ 3 Jaw Hydraulic Chuck on Main Spindle

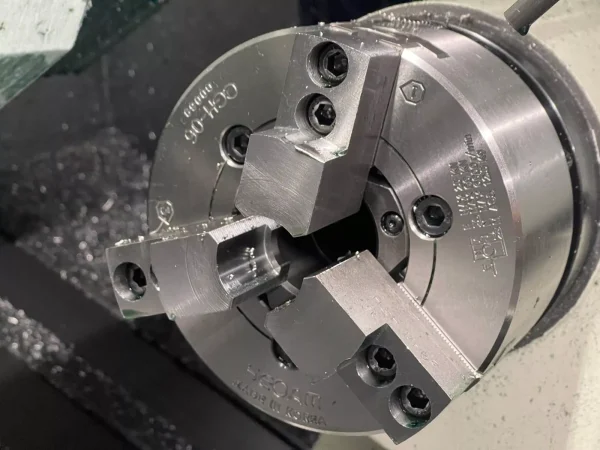

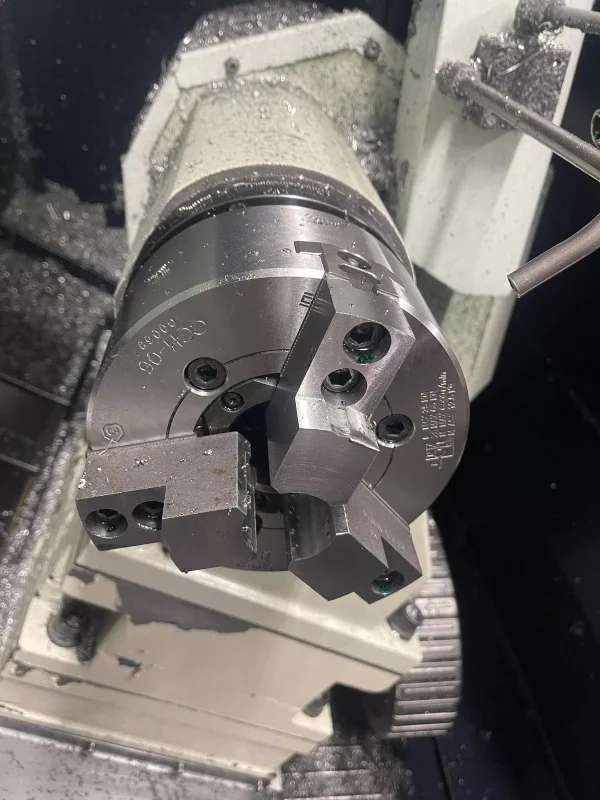

6″ 3 Jaw Hydraulic Chuck on Subspindle
Automatic Tool Eye

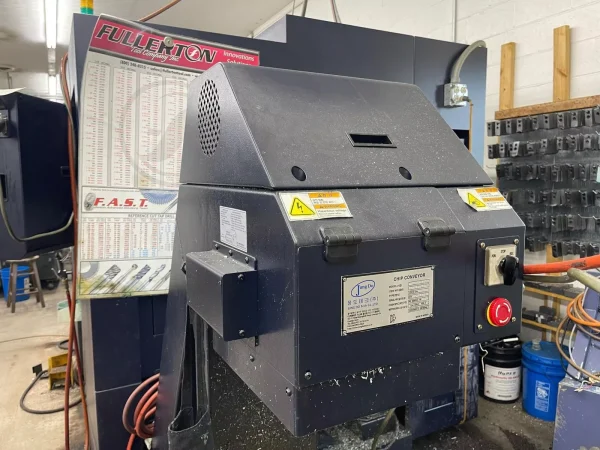

Chip Conveyor
Parts Catcher

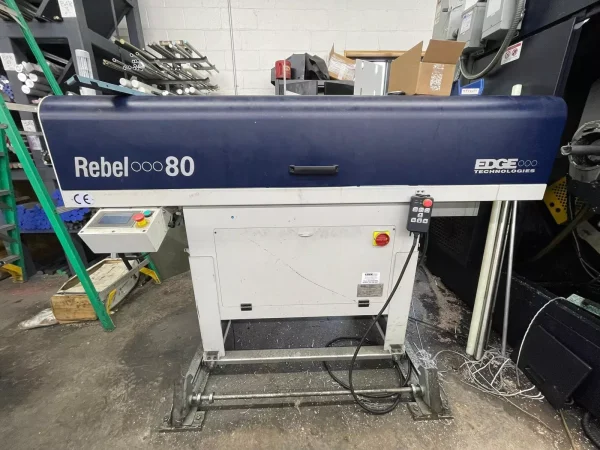

Edge Rebel 80 Servo 80 Bar Feed System
Extended Coolant Collector
Rigid Boxed Way Design
USB Port Interface
3.5″ Floppy Disk Drive Interface
RS 232 Port Interface
All Available Manuals
All Available Static/Live Holders
