Description

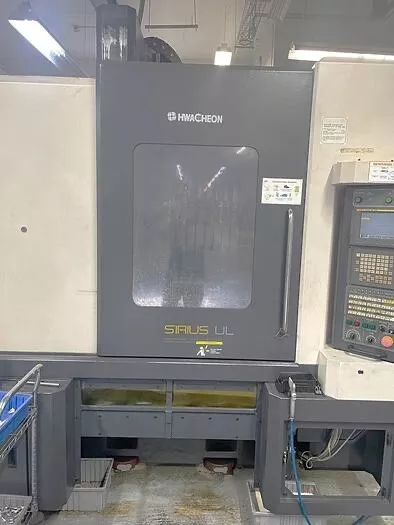

Hwacheon Sirius UL Die/Mold Machine 4th Axis Rotary Table – Year 2007
Manufacturer Hwacheon
Model Sirius UL Die/Mold Machine
Year 2007
Condition Used

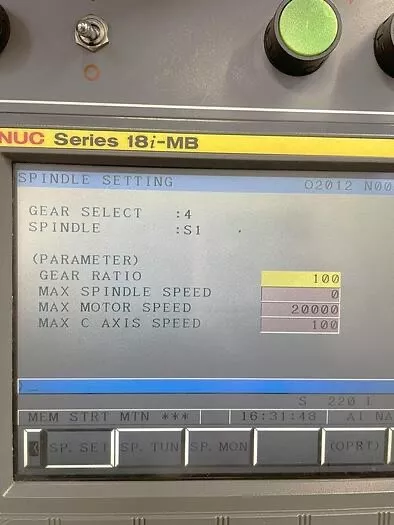

Machine Control Fanuc 18i-MB
Table size 47.28″ x 23.64″
Table load capacity 1,760 lbs
X-axis travel 47.37″
Y-axis travel 23.64″
Z-axis travel 21.67″
Spindle taper # 40
Spindle speed 20,000 RPM
Spindle motor 30 min. / cont. 50 HP / 25 HP
Tool magazine capacity-side mount 30 Station Side Mounted ATC
Max. tool diameter / length 6.7″ / 11.82″
Maximum Tool Weight 17.6 lbs.
Rapid traverse rates 1418 IPM
Machine dimensions lxwxh 158″ x 108″ x 125″
Machine weight 25,960 lbs.
4th Axis Rotary Table
Renishaw Probing
Coolant Through the Spindle
30 Station Side Mounted Tool Changer
20,000 RPM Spindle
Chip Conveyor
Coolant System with Tank & Pump
Oil Chiller Unit
trucking is buyers responsibility
