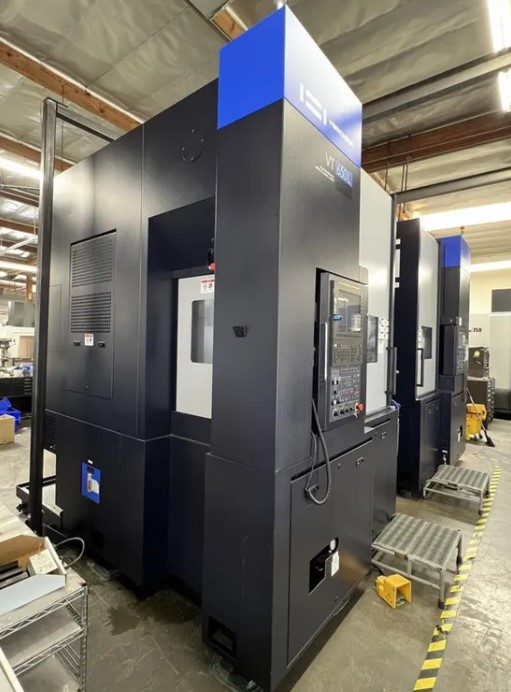

Hwacheon VT-650L CNC Vertical Lathe – Year 2022

Contact us for price

Category:

Description

Hwacheon VT-650L CNC Vertical Lathe – Year 2022

Year 2022
Make Hwacheon
Model VT-650L

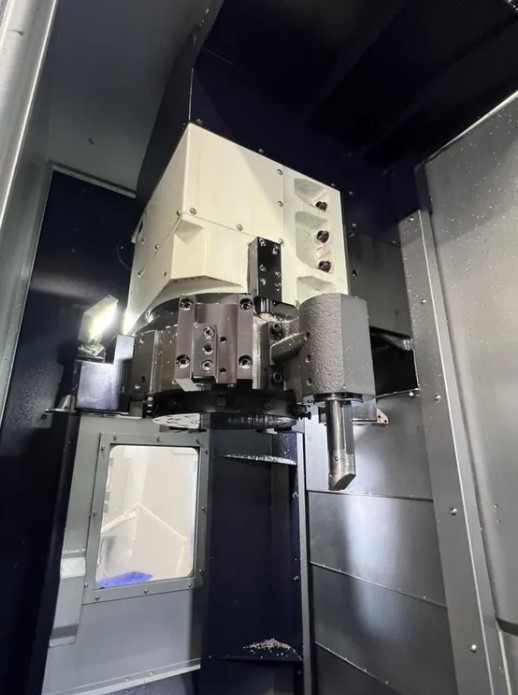

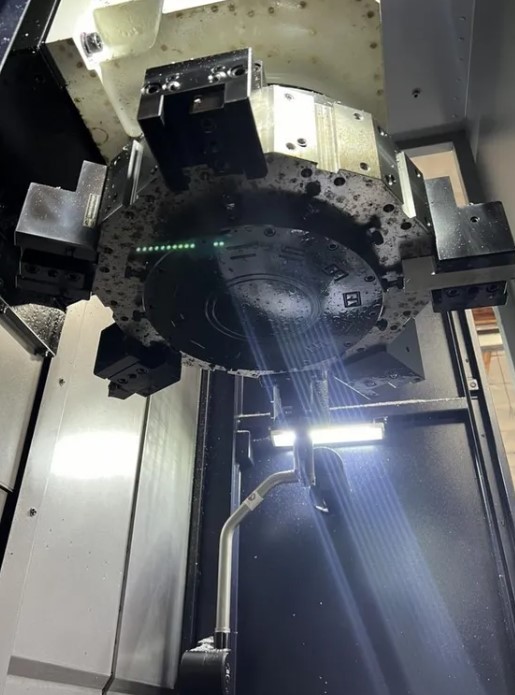

Hwacheon VT-650L CNC Vertical Turret Lathe



Chuck Size 24″
Distance Between Centers 18″
X-Axis Travel 16.92′
Z-Axis Travel 31.1″
Max Turn Height 29.5″
Swing 35.37″
Control Fanuc Series i
Spindle Speed 1500 RPM
Main Motor 30 HP
Work Height U/R 126.6″

FEATURES

Auto Tool Presetter Chip Conveyor



Hwacheon Unit VT-450 VT-450 2SP VT-650 VT-650 2SP VT-650 YMC VT-950+ VT-1150+
Axis-Stroke (X / Y / Z) mm 260 / – / 510 430 / – / 790 430 / 250 / 790 505 / – / 850 610 / – / 950
Spindle power kW 22 / 18.5 30 / 22 55 / 45
Spindle speed rpm 2500 1500 1125 1000
Spindle torque Nm 547.8 / 461.1 1578.9 / 1329.1 2863.6 / 1767.7 6459.6 / 5290.5
Rapid speed m/min 24 / – / 20 20 / – / 16 20 / 16 / 16 24 / – / 24 24 / – / 20
Tool shank BMT-65 / BH BMT-75 / BH BMT-85 / BH
Number of tools 8 (10) 12 (10) 12 12 (10) 12
Machine weight kg 7500 10450 12000 15000 24000
Max. cutting diameter mm 460 800 950 1150
Max. cutting length mm 460 750 850 950
Chuck-Size mm 305 (375) 457 610 1016
Swing over bed mm 610 900 1100 1350
Coolant tank vol. Liter 150 195 266



Why do Customers prefer using Hwacheon VT-650L CNC Vertical Turning Center with Ø450mm Chuck,Y Axis and Tool Magazin made in South of Korea ?
