Description

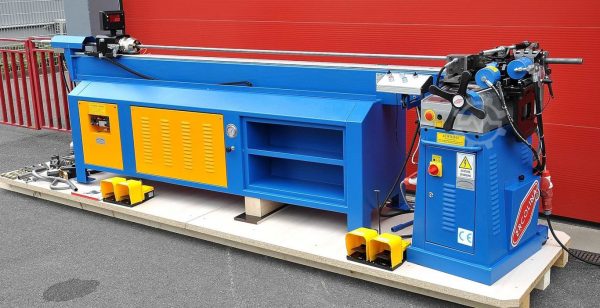

Tube bending machine with mandrel
Microprocessor control, semi-automatic control with foot pedal
30 programs
2 bending speeds selectable
Programmable hydraulic retraction of the mandrel
Digital length display for twisting position and twisting angle
3 tool sets:
R42 D23/3
R55 D30/3
R65 D32/3
Minimum bending radius 2 x pipe diameter
Maximum bending angle 180 degrees
Maximum bending radius 200mm
Maximum bending capacity approx. 76 x 2.5mm, depending on material
Foot pedal
Compressed air connection 6bar
Emergency stop switch
CE mark
Operating instructions German and English
Original paint
New price of the machine according to previous owner 40.000 Euro with tool
Dimensions approx. 4200 x 950 x 1250mm (LxWxH). Weight approx. 600kg.
