Geibel & Hotz G + H FS 1570 KT CNC – Year 2016

Contact us for price

Description

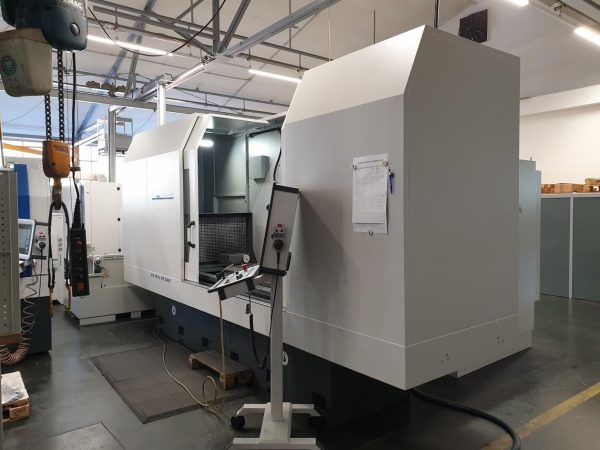

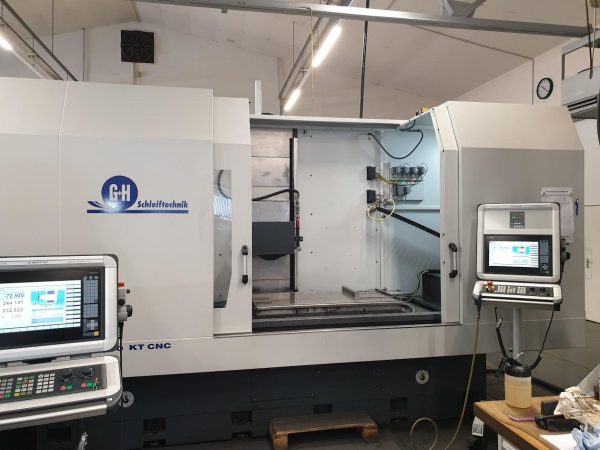

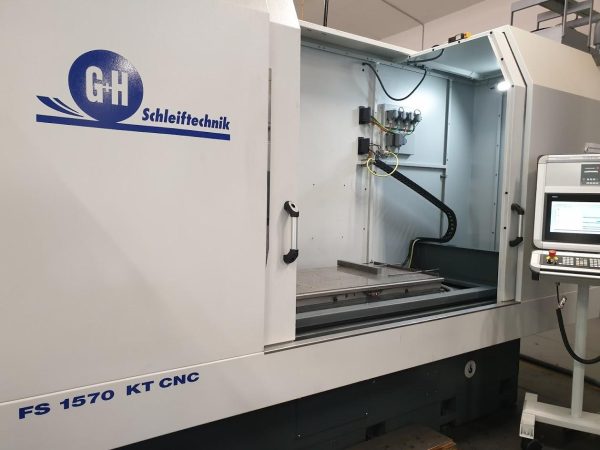

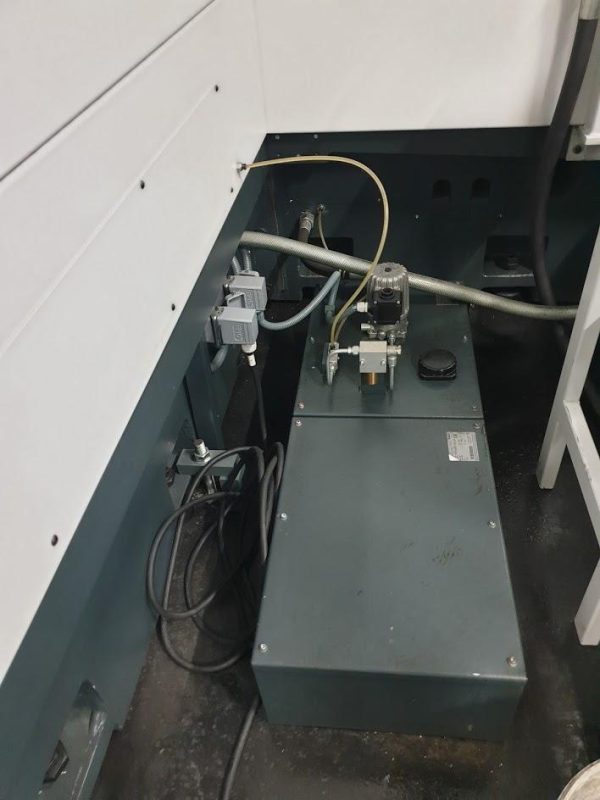

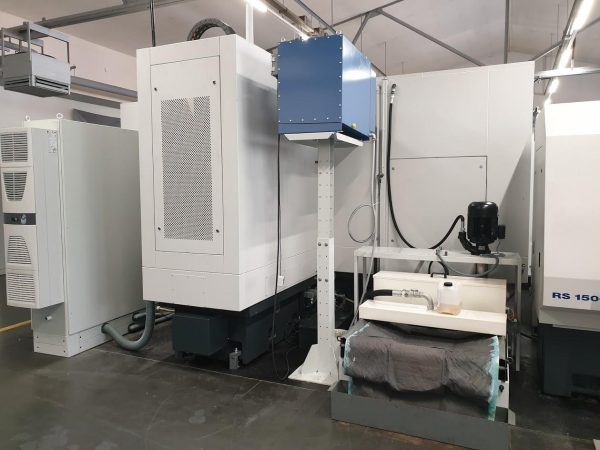

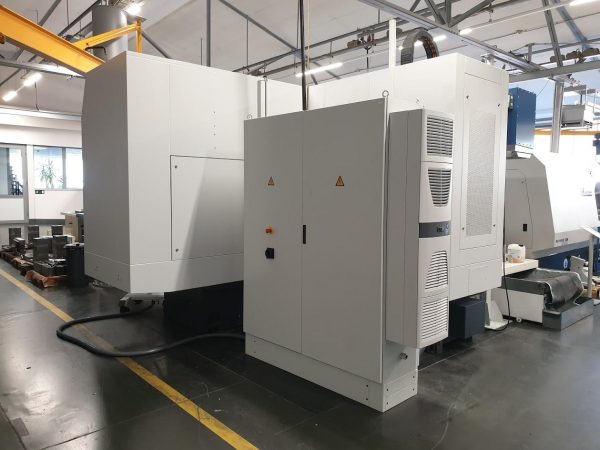

Geibel & Hotz G + H FS 1570 KT CNC - Year 2016
CNC Flat and Profile Grinder
Manufacturer
G+H Geibel & Hotz
Machine Model
FS 1570 KT CNC
Description
Workspace

Grinding surface: 1.300 x 800 mm

Grinding range: 1,300 x 700 x 600 mm

Table load max.: 2.380 kg

X AXIS = LONGITUDINAL MOVEMENT WORK TABLE
Table length stroke: 20-1.550 mm
Table drive: electromechanically with pitch-ring thread drive
Table speed: 5-35.000 mm / min
Table setup: electric handwheel and directional pushbutton

Y AXIS = VERTICAL MOVEMENT
Distance table to spindle centre: 180-800 mm
Vertical drive: electromechanically with ball screw drive
Vertical velocity: 5-4,000 mm / min
Vertical adjustment: electric handwheel and directional pushbutton
minimum delivery: 0.001 mm
Measuring system: Glass scale, internal resolution 0.0001 mm

Z AXIS = TRANSVERSE MOVEMENT
Transverse travel max.: 700 mm
Type of drive: electromechanically with ball screw drive
Cross-speed: 5-4,000 mm / min
Crossway setting: electric handwheel and directional pushbutton
Measuring system: Glass scale, internal resolution 0.0001 mm

GRINDING SPINDLE
Grinding spindle motor: 22 kW
Grinding spindle speed: 100-2.380 min-1
Peripheral speed: vc = 10-35 m / s
Grinding wheel, Standard: 400 x 100 x 127 mm
Conus: 5 °, Ømax = 75 mm
Spindle bearing: Precision rolling bearings
Lubrication: Life-time lubrication

Control

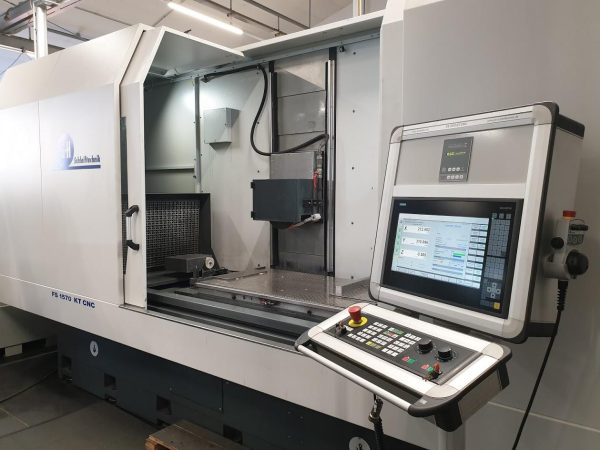

The CNC control is based on the SINUMERIK 840 D Solution Line
with an integrated PC and digital drive system SINAMICS.
Accessories
-clamping plate 1300 x 700mm with blow-out holes

-Filter systems and suction devices must be offered new
and are not included in the offer.

-Services are also offered according to new prices
and are not included in the offer.
Condition
Very good
Date built
2016
Running hours
-
Machine under power
no
Weight
2380 kg
Table width
over 1000mm
Table length
up to 1000mm
