Description
| X axis | 4000 mm |
|---|---|
| Y axis | 3100 mm |
| Z axis | 1000 mm |
| CNC | Yes |
| Table length | 4000 mm |
| Table width | 2200 mm |
| Max load on table | 10000 kg |
| Type of CNC | CNC HEIDENHAIN iTNC 530 |
| Spindle taper | BT50 |
| Max. spindle speed | 6000 rpm |
| Spindle motor power | 22 kW |
| Weight | 36000 kg |
| Worked hours | 8220 hours |
HARTFORD INFINITY HSA 423 EAY CNC gantry milling machine was built in 2014,
and was installed in 2015.
The two-column machining center is equipped with a 5-axis and a magazine with 40 tools.
The spindle speed of the machine reaches 6000 rpm. CNC control: CNC HEIDENHAIN iTNC 530
number of axles: 5
table dimensions: 4000 x 2200 mm
maximum table load capacity: 10000 kg
tool magazine: 40 pcs
tool holder: BT 50
spindle power: 22 kW
number of working hours of the spindle: 8220 h
spindle speed: 6000 rpm
column spacing: 2300 mm
machine weight: 36000 kg
space requirement: 13000 x 7000 mm
and was installed in 2015.
The two-column machining center is equipped with a 5-axis and a magazine with 40 tools.
The spindle speed of the machine reaches 6000 rpm. CNC control: CNC HEIDENHAIN iTNC 530
number of axles: 5
table dimensions: 4000 x 2200 mm
maximum table load capacity: 10000 kg
tool magazine: 40 pcs
tool holder: BT 50
spindle power: 22 kW
number of working hours of the spindle: 8220 h
spindle speed: 6000 rpm
column spacing: 2300 mm
machine weight: 36000 kg
space requirement: 13000 x 7000 mm
Working displacement:
axis X: 4000 mm
Y axis: 3100 mm
Z axis: 1000 mm
universal head: HF-AU360H indexed every 2.5º
cooling by spindle: 20 bar
optical rulers: X, Y, Z axes
oil spindle cooler

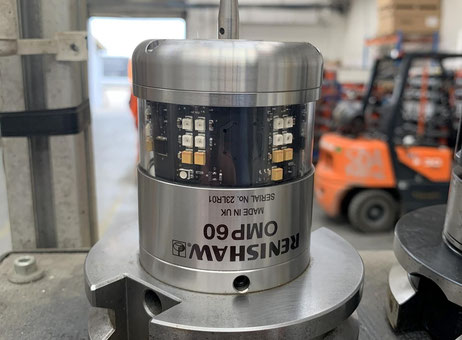

workpiece probe: RENISHAW OMP 60
tool probe probe software
