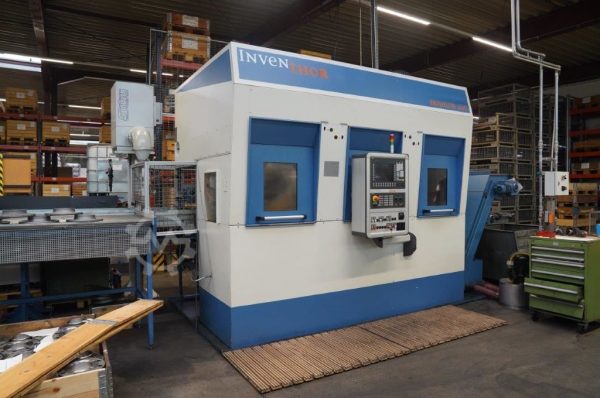

Description
Control Siemens Sinumeric 840D powerline
complete description available
Technical specifications:
Work report
Max. Chuck diameter 260 mm
Swing diameter with automation 250 mm
Swing diameter with manual assembly 300 mm
Travel paths X, Y 220/280 mm
Workpiece change time in the work area 2 seconds
2 main spindles
Spindle flange according to Din 55026 A6
Spindle bearing, front 140 mm
Speed, 1 from 0 – 3000 U / min
Speed, 2 from 0 – 4500 rpm
AC asynchronous motor 25% 17.5 kW, 100% 12.5 kW
Rapid traverse X, Z, U 25, 25.40
Feed force X, Z 5 kN
Ball screws X, Z, U diameter 32.40.50 mm
Cylinder holder 2 x 8-fold
VDI 30 shaft diameter
Motor power 48 kW
Dimensions and weight 3800×2800 mm
Weight 12.5 tons
