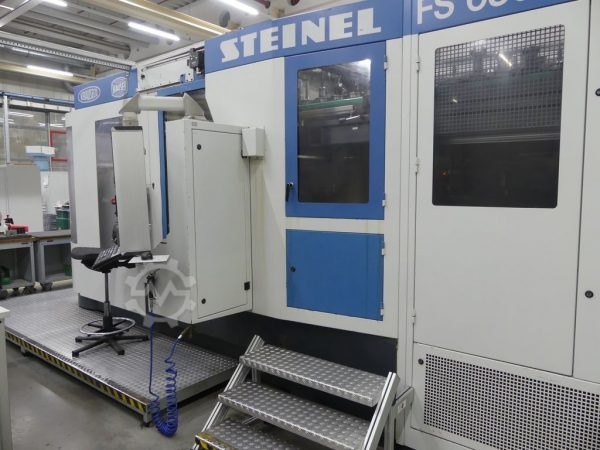

Description
Basic machine:
Dimensions:
7750mm x 3350mm x 2800mm
Transport dimensions:
6800mm x 2800mm x 2800mm
Machine weight:
24,000 kg
Elektr. Total connection value:
74KVA
Type of control:
Siemens Sinumerik 840D
Compressed air connection:
5.5 bar
Air consumption max.:
16 m ³/h
Pallet storage:
4-compartment MPS-4
Pallet change time:
ᐸ17 sec.
Tool changing device:
Hydre-operated double grasp system, electrically queried
Tool magazine:
3x Chain magazine with 40 tooletplaces
max. Tool length
400mm
Tool diameters:
120mm when all seats are occupied
200mm when neighbouring space is free
Pathways of work:
Vertical X-axis
800mm
Longitudinal Y axis
630mm
Cross-way Z-axis
710mm
Distance of the X-axis
Work spindle mitte/Table centre
+-400mm
Minimal distance Y-axis
Working spindle nase/pallet top edge
105mm
Minimal distance Z-axis
Work spindle nase/Round table centre
160mm
Workpiece-swivel area in the workspace
* 800mm
Max lift from pallet top
750mm
Avengetic drives:
Pre-push drive:
X, Y and Z axis
maintenance-free rotary current servo engine (AC)
X, Y and Z axis
Cling orbital spindle * 63
Substrate speed:
X, Y and Z axis
1-40,000 mm/min.
Eilgang:
X, Y and Z axis
40 m/min.
Inferral strength for:
X, Y and Z axis 100% ED
12,500 Nm
Measuring-System:
In X, Y and Z axis:
Line scales
direct
Resolution
0.001 mm
