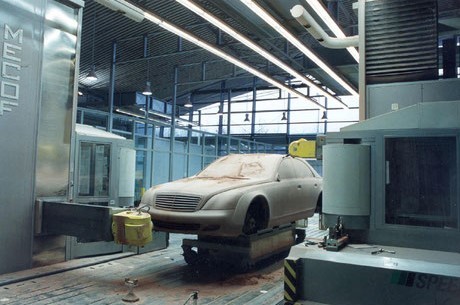

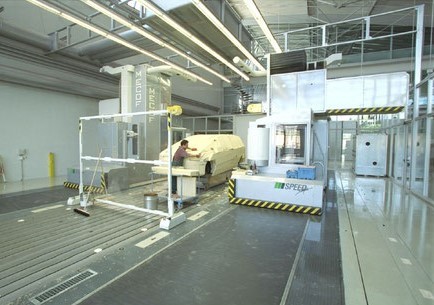

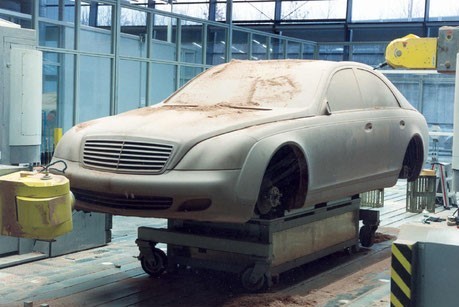

Description
| X Axis | 16000 mm |
|---|---|
| Y Axis | 1650 mm |
| Z Axis | 3000 mm |
| CNC type | FIDIA M30 |
| Spindle motor power | 190 kW |
| Overhauled | no |
| Length x width x height | 23000.0 × 4960.0 × 6300.0 |
| Weight | 35000 kg |
Year of make 1997
Control (2x) FIDIA M 30
Travels
longitudinal (X) 16,000 mm
cross (Y) 1,650 mm
vertical (Z) 3,000 mm
Feed rate stepless (X-Y-Z) 20,000 mm / min
Spindle taper HSK 50 A
Spindle speed 15,000 min -1
Spindle motor 15 kW
Equipped with:
• 2 Milling heads with 2 axes: SPAZIO 11
A +/- 110 ° / 2000 ° min -1
B +/- 400 °
Space required: 23,000 x 4960 x 6300 mm
Total weight: about 35 ton
Power installed: 190 kVA
