Description

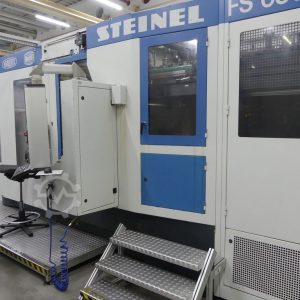

Horizontal machining center with pallet changer STEINEL type BZ 24 FFZ
with CNC control SIEMENS Sinumerik 850 M
year 1990
Traverse path x 630 mm, Y: 500 mm, w: 500 mm
Table size per pallet 400 x 400 mm
B rotation range
Max 7100 RPM infinitely variable spindle speed
Spindle taper ISO 40
Power supply 380 Volt, 50 Hz, 80 amp.
-Tool changer with 60 tool locations and double arm grab
-Pallet changer with 4 pallets
-Horizontal horizontal pallet space for editing, axis motion = X-axis
-Palette rotation = B-axis
-Spindle Ramm as Z axis
-Spindle pile with lateral movement as Y-axis
-Coolant nozzles on the spindle driving and in the working area
-Coolant system with chip conveyor under the work area
-CNC control SIEMENS Sinumerik 850 M with TFT monitor
-Interface for data transfer
Dimensions L x W x H 9000 x 3100 x 3200 mm
Weight 13.5 ton.
good condition
Transport dimensions:
Machine with tool magazine L x W x H 9000 x 3000 x 3000 mm
Chip conveyor L x W x H 4700 x 1000 x 1450 mm
