Description
JOBS LINX Design – Year 2008

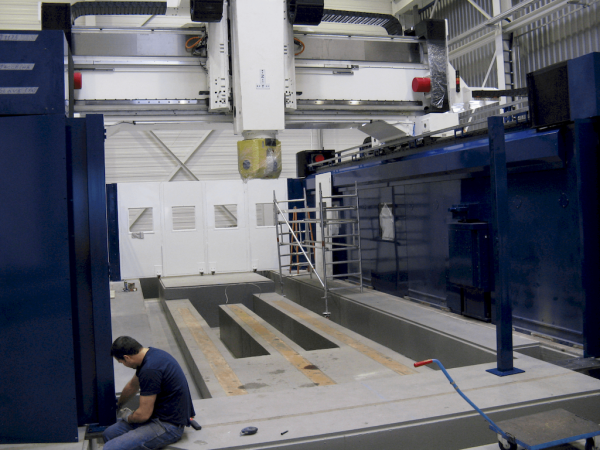

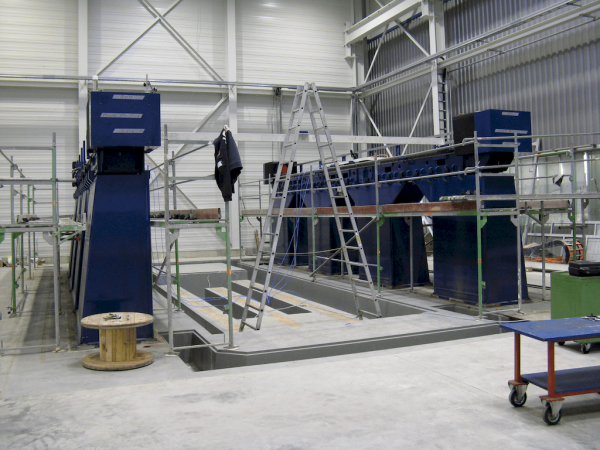

CNC 5-Axis Double Column Bridge Type Vertical Machining Center 7.2 Meters
Axis X 7200 mm
Axis Y 4000 mm
Axis Z 2200 mm
Type Vertical
CNC Fidia C20
Number of tool pockets 40
Spindle taper
Max. spindle speed 24000 rpm
Rotary table no
Worked hours 3897 hours
CNC: Fidia C20
Number of spindles: 1
Spindle speed range: 24000 rpm
Tool taper: HSK 63
Number of axis: 5
X-Axis Movement: 7200 mm
Y-Axis Movement: 4000 mm
Z-Axis Movement: 2200 mm
A-Axis Movement: +/- 100°
C-Axis Movement: +/- 200°
Clamping table: 7000 x 2500 x 250 mm
Cooling medium: Air & spray mist
Newly overhauled 2nd spindle: Available
X-axis guide renewed: 2021
C-axis measuring system: Encapsulated dust-free
Tool changer: 40 places
High spindle speed of 24000 rpm, newly overhauled 2nd spindle available, x-axis guide renewed in 2021, encapsulated dust-free c-axis measuring system
High precision with encapsulated dust-free c-axis measuring system
Currently 3897 hours on the spindle
