Johnford DMC-2100H – Year 2004

Contact us for price

Description

Johnford DMC-2100H – Year 2004
CNC Gantry Style Machining Center

CNC Control yes
Type of CNC Control Fanuc 18i-MB
Table Size 86.6″ x 43.3
Max Table Load 13,200 lbs
X-Axis Travel 80.7 inches
Y-Axis Travel 51 inches
Z-Axis Travel 31.5 inches

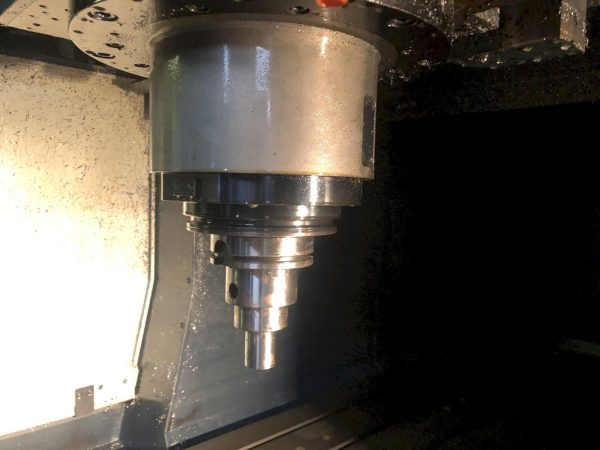

Spindle Taper HSK 100A
Spindle Speed 15,000 rpm
Power 43 horsepower
ATC Capacity 40
Dimensions 255″ x 130″ x 149″
Weight 52000 pounds
– Fanuc 18i-MB Control
– AI NANO Contour Control
– High Speed HRV Function
– Jerk Control
– Manual Guide
– Embedded Ethernet
– Heidenhain Glass Scales on all Axis
– Oil Mist Coolant
– Heat Exchanger
– Full Enclosure
– Double Screw-Type Chip Augers
– Chip Conveyor
– Rigid Tapping
– Custom Macro B
– Spindle Oil Cooler
– Coolant Tank & Pumps

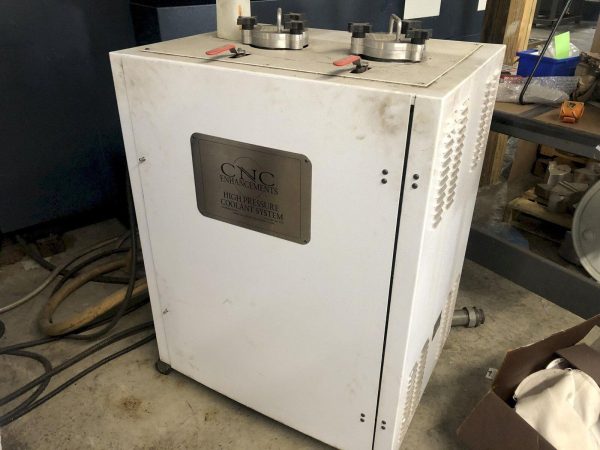

– High Pressure Coolant Thru Spindle (CNC Enhancements Unit)
