Description

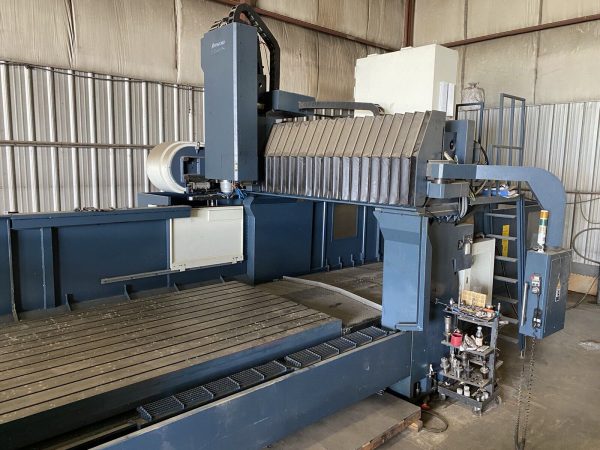

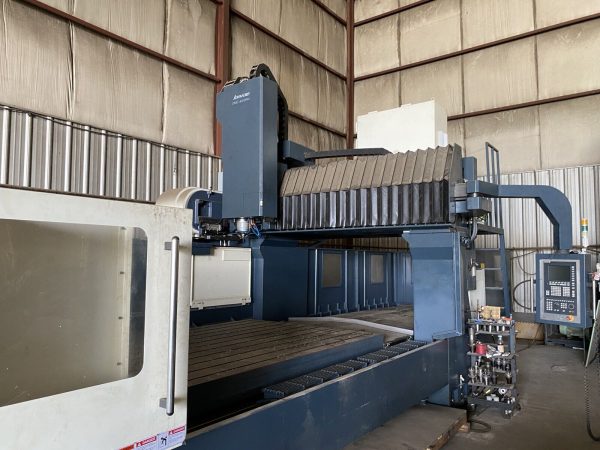

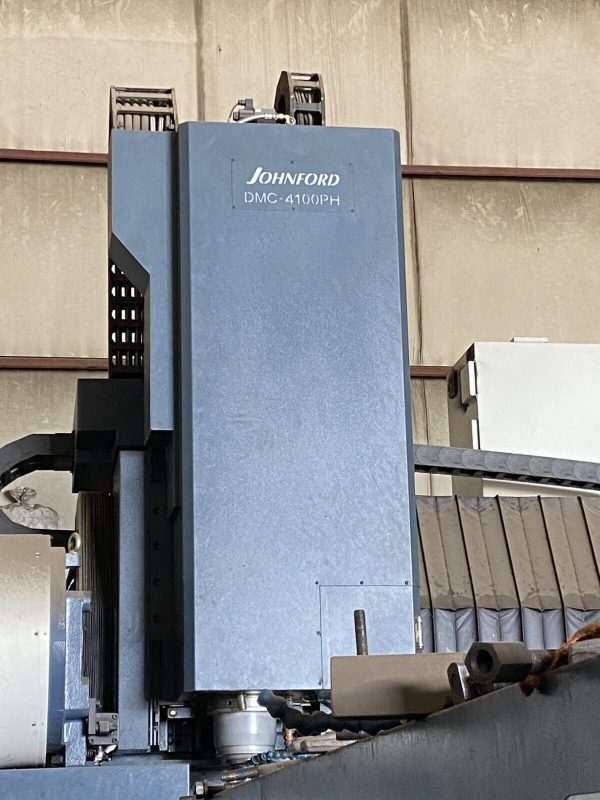

Johnford DMC-4100PH – Year 2013
CNC Double Column Vertical Machining Center 4.1 Meters
YOM:2013
Table Size: 165.3” x 80.7”
X-Travel: 161.4”
Y-Travel: 90.5”
Z-Travel: 48”
Spindle Nose to Table: 5.9” – 47.8”
Tooling Taper Type: Cat 50
Spindle Bearing: 3.5”
X-Y-Z Rapid Traverse: 12x12x12m/min
X-Y-Z Cutting Feed: 1-10000mm/min
Ask. Pockets Max. Tool Dia.: 5”
ATC: 40 Tools
Max. Tool Diameter: 7.8”
Max. Tool Length: 15.7”
Max. Tool Weight: 33 lbs.
Table Load Capacity: 22,000 lbs.
Dimensions: 500.4” L x 219.7” W x 176.6” H
Equipped with:
Coolant System, Oil Mist Coolant System, Heat Exchanger, Full Enclosure, Chip Conveyor, Rigid Tapping, Spindle Oil Cooler, Tool Presetter, High Pressure Coolant thru Tool Tip & thru Spindle, Cat 50, Probe, Linear Scales, Fagor Control.
Machine was originally shipped with a Fanuc control. Owner had a Fagor control installed on machine by manufacturer. Fanuc control option is available for additional charge. All specifications subject to verification, machine in plant and is under power. Machine has under 500 hours on it.
