Description

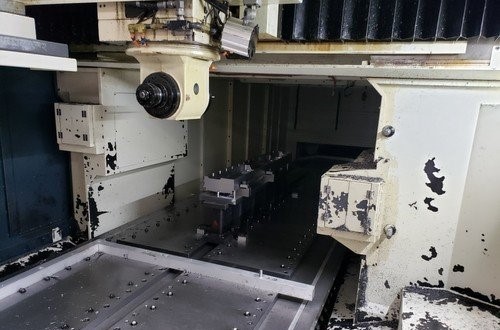

JOHNFORD DMC-5100SH – Year 2011
| X | 5,097.8 mm |
| Y | 1,800.9 mm |
| Z | 800.1 mm |
| Power | 26.1 kW |
| RPM | 6,000 RPM |
| Table-W | 1,498.6 mm |
| Table-L | 5,181.6 mm |
| # ATC | 60 |
| Taper | CT 50 |
JOHNFORD DMC-5100SH – Year 2011
GENERAL SPECIFICATIONS
Control: Fanuc 18iMB
Table Size: 204.7” X 59”
Table Load Capacity: 26,400 LBS
X – Axis Travel: 200.7”
Y – Axis Travel: 70.9”
Z – Axis Travel: 31.5”
Distance Between Columns: 70.4”
Spindle Nose to Table: 11.8” – 43.3”
Power: 35 HP + Auto Hi / Lo Gear RPM: 0 – 6,000
ATC: 60
Taper: CAT50
Approximate Weight: 92,620 LBS
INCLUDES: 5 Face Head (Delivers Full 360° Min. Increments of 5°),
Fanuc 18iMB CNC Control,
Vertical Spindle & Horizontal Spindle Attachment (Stored in its own Cradle),
1,000 PSI High Pressure Coolant Thru Spindle,
Rigid Tapping,
Spindle Oil Chiller,
Renishaw Tool Probe System,
Coolant System,
(60) Automatic Tool Changer Capacity and Chip Conveyor.
200.7” X 70.9” X 31.5” Vertical Machining Center with 5 Face Head (Delivers Full 360° Min. Increments of 5°), Fanuc 18iMB CNC Control, Vertical Spindle & Horizontal Spindle Attachment (Stored in its own Cradle), 1,000 PSI High Pressure Coolant Thru Spindle, Rigid Tapping, Spindle Oil Chiller, Renishaw Tool Probe System, Coolant System, (60) Automatic Tool Changer Capacity and Chip Conveyor.
