Description
Kaltenbach KBS 750 DG / KDM 615 – Year 2010

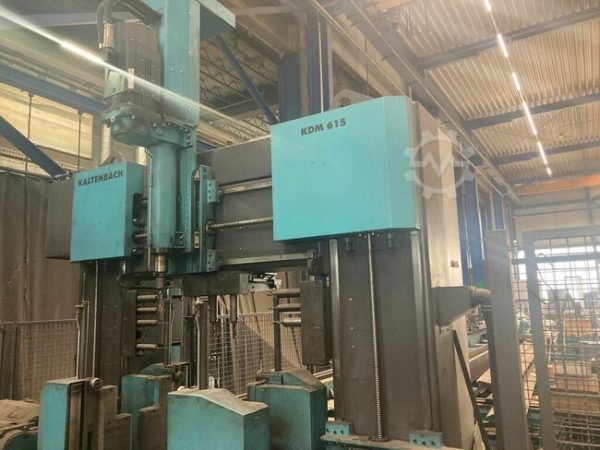

CNC drilling – sawing plant Kaltenbach
Mitre band saw system type KBS 750 DG / KDM 615
Profile beam drilling system KDM 615
Year of construction 2010
length measuring device M 152 GG
saw cutting range 90 degrees 750 x 500 mm
Saw cutting range 45 degrees 550 x 500 mm
Smallest material cross section 10 x 10 mm
Cutting speed 15 – 100 m / min
Saw blade feed infinitely variable mm / min 300
Drive 5,5 kw
weight 3100 kg plus switch cabinet
Kaltenbach profile carrier drilling machine
Working area max 600 x 500 mm
Minimum 50 x 5 mm
Drilling units vertical 1 piece
Horizontal Z and W axis 2 pieces
Drill diameter 8 – 40 mm HSS
Carbide 8 – 40 mm
Spindle speeds 150 – 2500 rpm
drill feed rate 10 – 1500 mm / min
rapid traverse 20.000 mm / min
Mounting SK 40
Automatic tool change 3 x 5 15 pieces
Tool clamping vertical 4 x 6000 N
Tool clamping horizontal 20.000 N
3 drilling drives 20 kw each
3 drill feed drives each 3 kw
3 drill slide drives each 2 kw
Weight 8500 kg
Length measuring deviceM 152 GG
Measuring range up to 12 m
Measuring carriage speed up to 0 – 30 m / min
Transport system T 13
working height 640 mm
Roller diameter 77 mm
Roll width 730 mm
Transport speed 0 – 30 m / min
Cross transports 2 x
Transport system T 13
