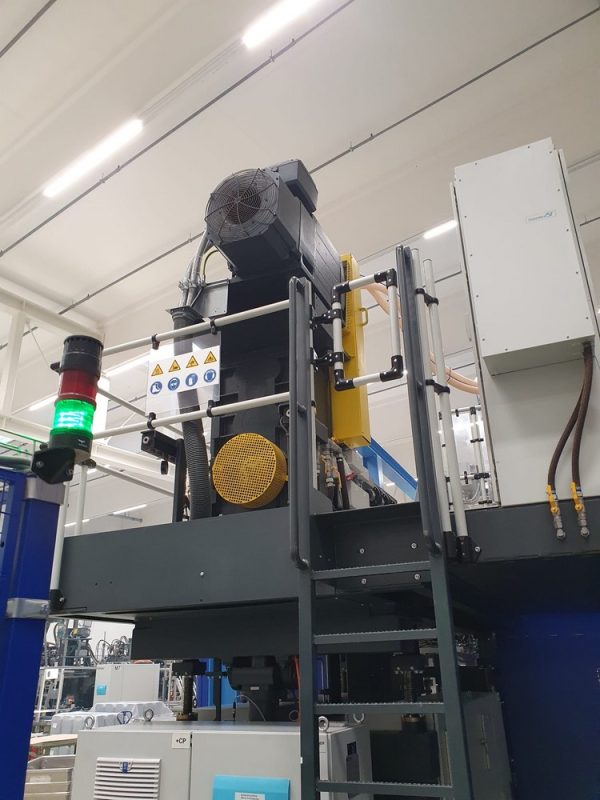

Kautex KBB400D Extrusion Blow Molding Machine – Year 2017
| Year | 2017 |
|---|---|
| Make | Kautex |
| Model | KBB400D |
| Kautex KBB400D | Continuous Extrusion Shuttle Style Blow Molder |
| Type of Blow Molder | Continuous Extrusion Shuttle Style |
|---|---|
| Extruder | Kautex Extruder (420-460kg/h of HDPE) |
| Mono-Layer Machine | 2 x 5 & 10l Stackable Jerry-Cans |
| Max Mold Width | 660 mm |
| Max Mold Height | 100 mm |
| Mold Thickness/Depth | 2 x 250 mm |
| Mold Opening Stroke | 400 mm |
| Max Mold Weight | 1,200 Kg |
| Clamping Force | 30 mt |
| Carriage Stroke | 670 mm |

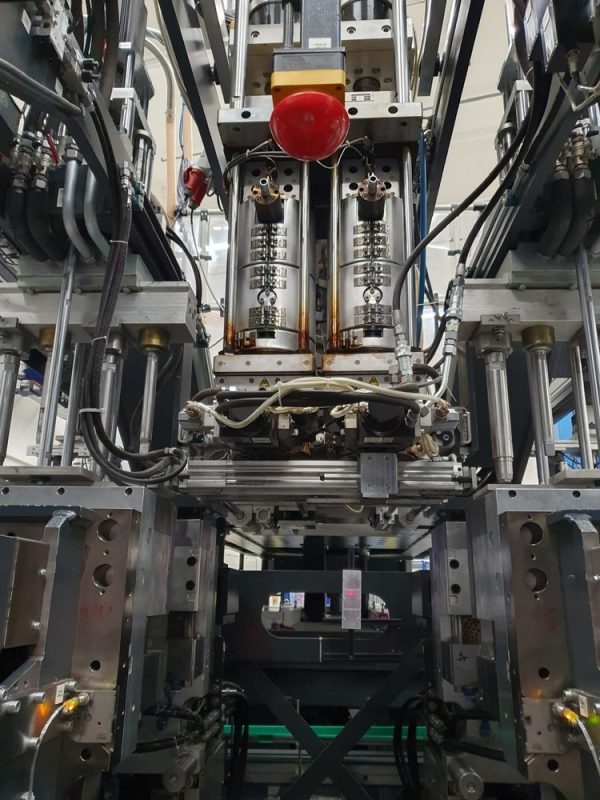

| Head (WM) | 2 x CD 280 mm / Max. Die Diam. 160 mm |
| Hydraulics | 2 x Hydraulic PWDS |
FEATURES

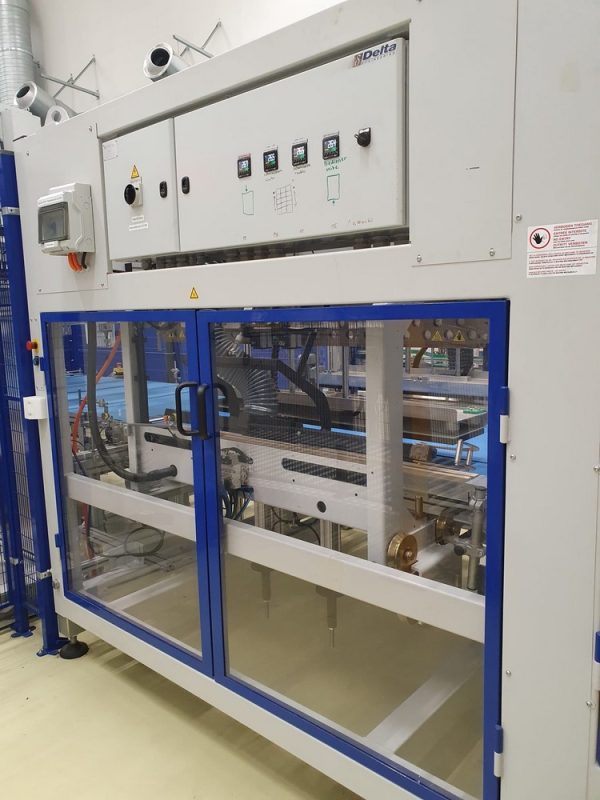

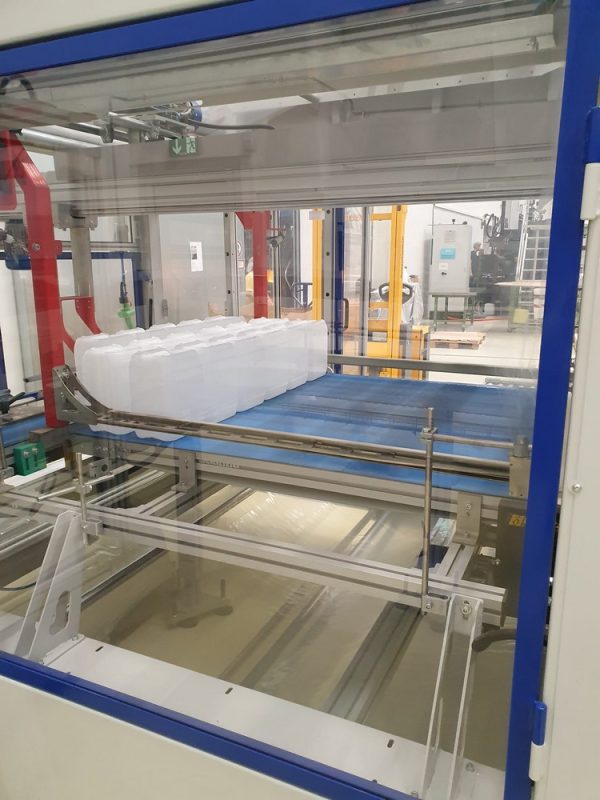

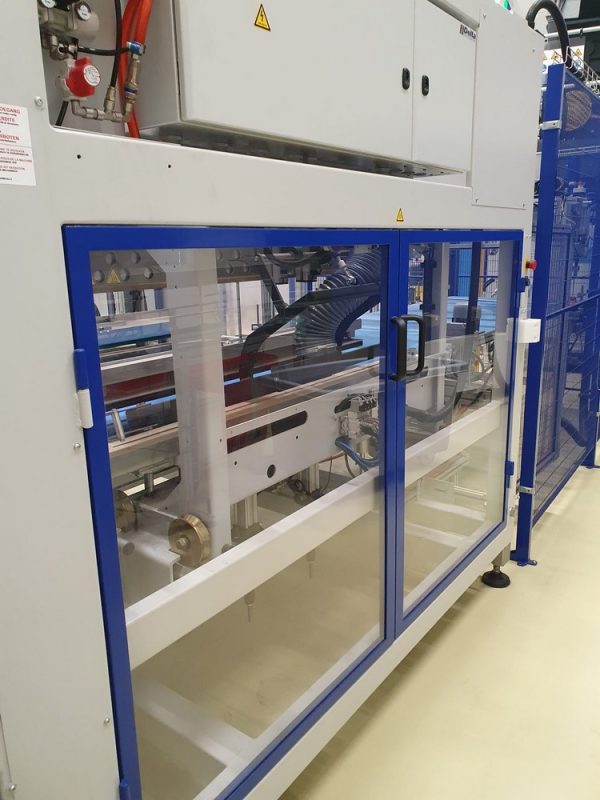

| Fully Automated Palletizer | Fully Automated PE Foil Bagger |

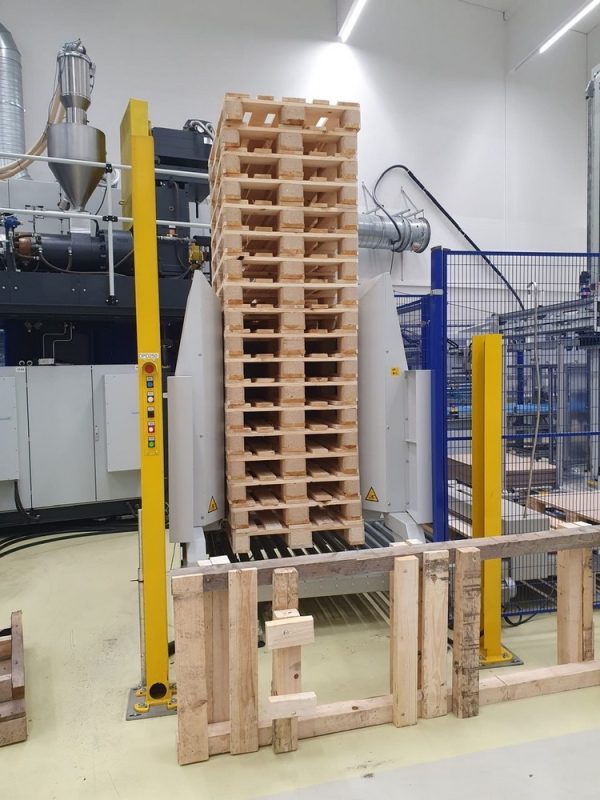

| Pallet Magazine | SpotWatcher (Esp. nice for Pharma-Applications i.e. very Sophisticated Inspection) |
| Very Low Hours |
Kautex KBB range
Kautex KBB extrusion blow molding machines – the gold standard in packaging
Maximum performance and minimum energy consumption: The all-electric extrusion blow molding machines from Kautex Maschinenbau System GmbH are the benchmark for bottle and jerry can production. KBB machines will transform your production processes to high-performance production thanks to the shortest cycle and fastest change over times.
The second generation, KBB evo, wins our customers over with even higher productivity alongside lower energy consumption and more attractive investment costs. All-electric extrusion blow molding machines don’t just set standards in terms of economy; they also do so in terms of ease of use.
The use of master batch is reduced significantly from the 3-layer ReCo3 right through to the multilayer co-extrusion production process. This is because a large proportion of regrind can be returned to the production cycle. You will also be hugely impressed by the machines’ outstanding energy efficiency, proven in tests in line with the Euromap 46.1 standards. Many models achieve the highest energy efficiency classification of 10.
KBB machines are available as single or double stations. The height of the clamping platens and the scope of the installation depth and the daylight opening represent a key distinguishing characteristic for the jerry can machines. The clamping forces of the bottle variants KBB40 to KBB100 range from 100 kN to 500 kN.
