Description

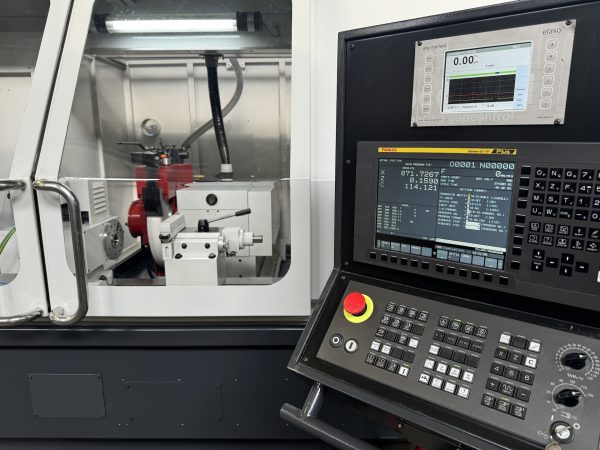

Kellenberger UR175x1000 CNC Cylindrical OD Grinder
Max. grinding length 1000 mm
Grinding diameter 350 mm
Exter Yes
Inter No
CNC Yes
Type of CNC Fanuc 0iTF-plus
Cylindrical Grinding Machine Kellenberger UR175x1000
Manufacturer: Kellenberger
Model: UR175x1000
Control: Fanuc 0i-TF Plus
Centre Height: 175 mm
Distance Between Centres: 1000 mm
Max. Grinding Length: 1000.0 mm
Grinding Diameter: 350.0 mm
Work Piece Spindle Head Speed: from 20 rpm up to 400 rpm
Table Angular Displacement: 8 °
Table Speed: stepless up to 10.0 m/min
C Axis: Available
Technical Condition: Rebuilt
State: Under Power
Features:
– Fully retrofitted in collaboration with Fanuc
– New electric cabinet and new electric diagram
– New CNC command Fanuc 0i-TF Plus
– New servomotors and servodrives Fanuc
– New Elaso balancing system with GAP included
– Grinding wheel loader
– Cooling tank with paper filtration
– Geometry made according to the Kellenberger protocol
The machine can be seen and tested anytime.
