Kia Super Turn 21V – Year 2009

Contact us for price

Categories: ,

Description

Kia Super Turn 21V – Year 2009
CNC Lathe

Year 2009
Make Kia
Model 21V

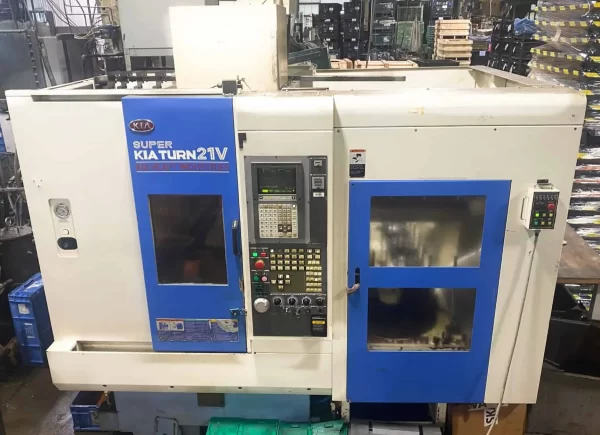

Kia Super Turn 21V CNC Lathe



Chuck Size 8″
Swing 26″
Turning Diameter 13.7″
Spindle Speed 5,000 RPM
Control Yasnak J300L
Distance Between Centers 5.9″
Turret 12 Station
Rapid Traverse 1,181 RPM
Turret Indexing 0.3 Second 1 Face / 0.6 Second 7 Face
Power Requirement 200-220V/26 KVA
Machine Weight 10,000 Lbs
FEATURES

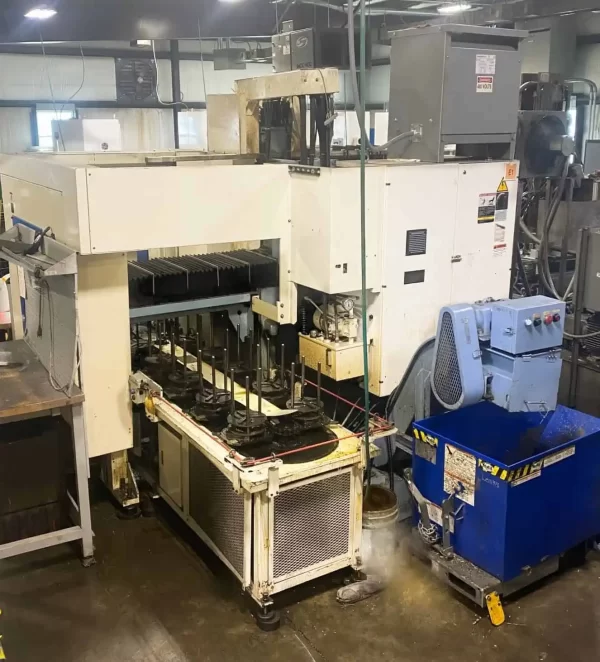

12 Pallets for Multi-Part Work Piece Stacker 12 Tools Turret with Coupling Clamp
15 HP Spindle Drive with Wide Full Power Range Electric NC Soft Torque Limiter
Environmentally Safe no Lubrication Oil System NSK Ball Screws (Permanent Grease)
NSK Linear Motion Guideways (Permanent Grease) Separate 64 Gallon Coolant Tank
Spindle with Chiller Unit Tool “Q-Setter”
Auto Tool Presetter
