KINETIC K5200XMC – Year 2018
Plasma Cutting System Combination Machine

PLASMA CUTTING, MILLING & DRILLING SYSTEMS

Brand: Kinetic
Model: K5200XMC
Year: 2018

Specifications

Table Size: 10′ x 100′
Plasma Power Source: 400amp
Spindle Taper: CAT 50
Traverse Speeds: 800IPM

Equipped With

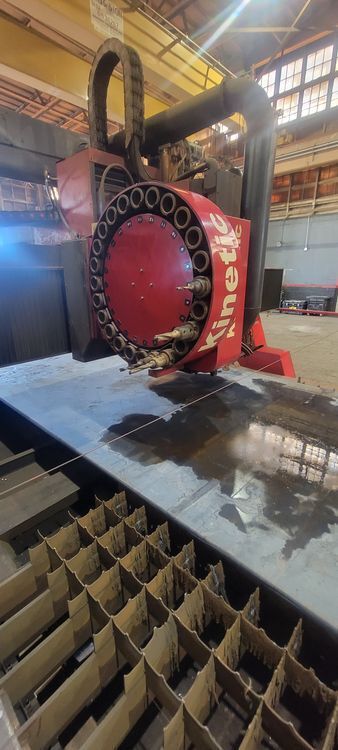

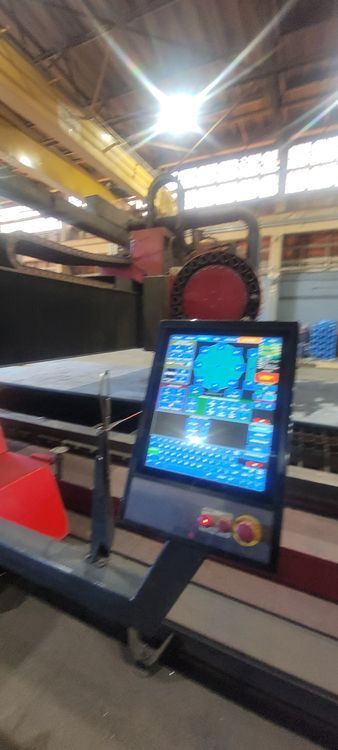

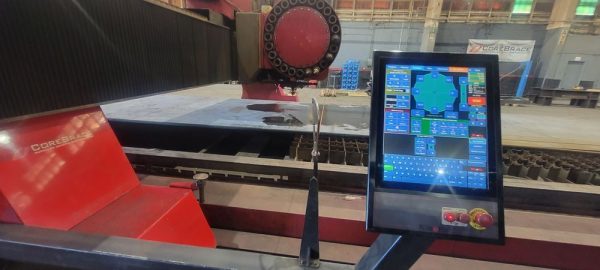

Hypertherm HPR400XD Power Source, Bevel Plasma Head, Oxy Torch, Drill Head, 24 Station ATC, Down Draft Table, Scribing Capabilities, 19″ LCD Touch Screen Controller

Can be inspected upon request.

Manufacturer Catalogue Information about
KINETIC K5200XMC Plasma Cutting System Combination Machine :

K5200XMC PLASMA CUTTING SYSTEM

Plasma & Oxy Fuel Cutting
Bevel & Multi Torch Cutting
Drilling, Milling & More
Automated Part Removal

The K5200xmc is identical to our top-of-the-line K5000xmc plasma cutting system, but comes configured for the addition of our automated part removal system. This automated option, if included, helps shops save time by automatically removing finished parts from the machine while the system continues cutting.

Thanks to a low-profile, automated carriage, our part removal system can pick, place and palletize parts, and sort them by part, work order or batch number. It can even travel under the cutting gantry, so there is no need to stop the machine to remove parts.

Automatically Unloads when Equipped with Optional Robot
Sorts & Palletizes
Plasma to 3″
Oxy to 8″
Drilling to 4″
Tapping to 2-1/16″
CAT 50 Spindle
Table to 16′ Wide
This heavy-duty combination plasma cutting, oxy-fuel cutting, and milling machine will give your business a competitive edge. With multiple functions in a single machine, plus automated part removal, there’s no need for complex fixtures, multiple setups, or moving work pieces from station to station, maximizing productivity and profitability for your business.

Cutting Capabilities

Plasma up to 3” thick
Oxy Fuel up to 8” thick
Plasma Beveling
Oxy Fuel Beveling
Triple Oxy Beveling
Pipe Cutting
Machining Capabilities

Drilling up to 4” hole
Tapping up to 2-1/16″ hole
Milling
Counter Boring
Chamfering
Hole Interpolation
Thread Milling
Part Marking
Table Size

Up to 16’ wide
Up to 200’ long

BENEFITS
Maximize Productivity

Configured for automated part removal robot for increased output
Automatically unloads, sorts, palletizes and stacks parts
Unloader available in 48″ or 60″ size
Cutting, milling, drilling and more in the same step
Multiple lifter stations for up to 2 independently driven plasma torches
CAT 50 spindle with 24 tool stations
Automated tool changes in under 3 seconds
Part marking via plasma marking, percussion marking, inkjet, stamping or scribing with the spindle
Minimize Downtime

Automated tooling alerts prevent breakdowns
Auto tool height measurement reduces loading time
High performance downdraft table minimizes smoke and fumes
Innovative self-cleaning table design saves time
Travelling dross bins for fast under-carriage cleanout
Modular table slats for fast changeout
Closed chip extraction system automates chip collection
Coolant recycling system minimizes refills
Standardized, quick-ship replacement parts
Speed & Accuracy

Best-in-class plasma accuracy
Best-in-class machining accuracy
Best-in-class repeatability
Traverse speed of 800”/min
Dual driven rack and pinion drive system
Linear rails with helical racking
Programmable ball screw drives for vertical axes
Linear bearing guide system on all axes
19” LCD touchscreen for fast setup and easy control
Fiber optic network link to load programs quickly
Durability

One-piece welded gantry designed for the rigors of modern manufacturing
Full protection for all lines and drives
Heavy-duty frame and component parts
Floor mounted rails with protection
Through-spindle coolant to extend tooling life

Options & Accessories

Part marking via plasma marking, percussion marking, inkjet, stamping or scribing with the spindle
Automated part removal system
Complete customization for your specific application
Available Cutting Heads

Hypertherm HPR800XD, for stainless steel applications
Hypertherm HPR400XD
Hypertherm XPR300XD
Hypertherm XPR170
Oxy Fuel cutting
Plasma bevel cutting
Oxy fuel bevel cutting
Multi torch cutting
