Description

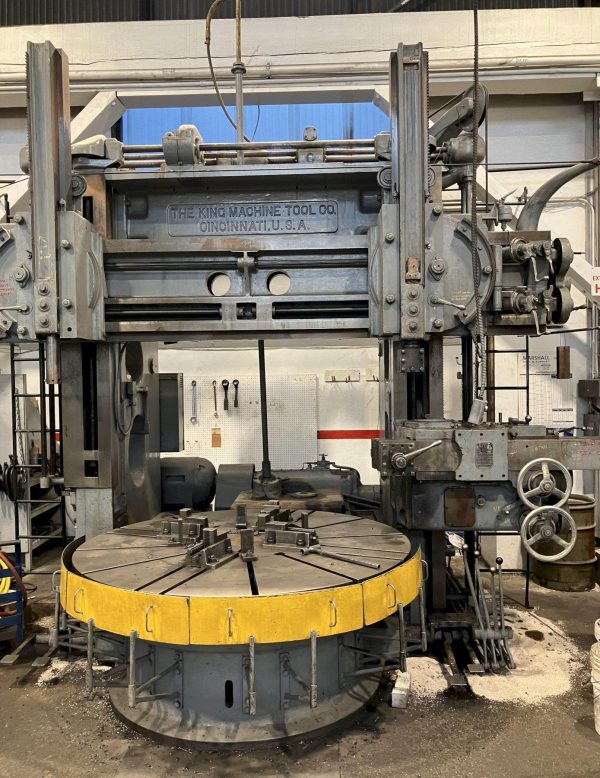

KING Vertical Boring Mill – Year 1956
Table Size…………………………………………..84″
Max. Swing………………………………………..91″
Height Under Rail……………………………72.5”
Table Speed (16)………………………………1,9 To 75 RPM
Feeds (12)………………………………………. .010 To .500 IPR

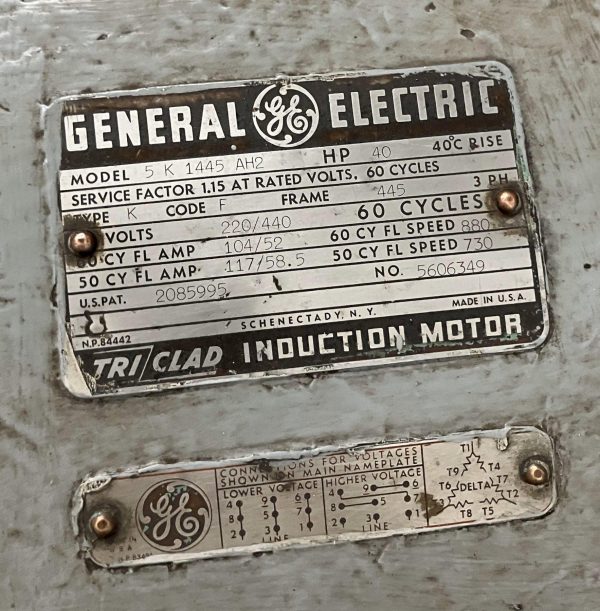

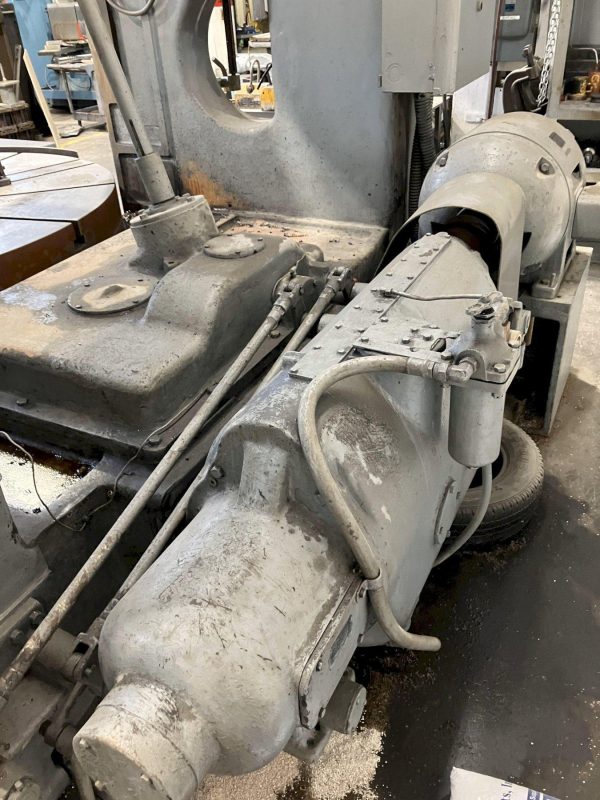

Main Motor……………………………………..40 Hp.
Vertical Travel OF Turret………………..56″
Right Hand Turret Travel Cross…….60″
Horizontal Travel Of Side Head……35″
Vertical Travel Of Side Head…………58″
Machine Width Left To Right……….18′
Depth Front To Back………………………10′
Machine Height……………………………..12′
Machine Weight…………………………….69,000 Lbs.
EQUIPPED WITH:
2 swivelling Ram heads

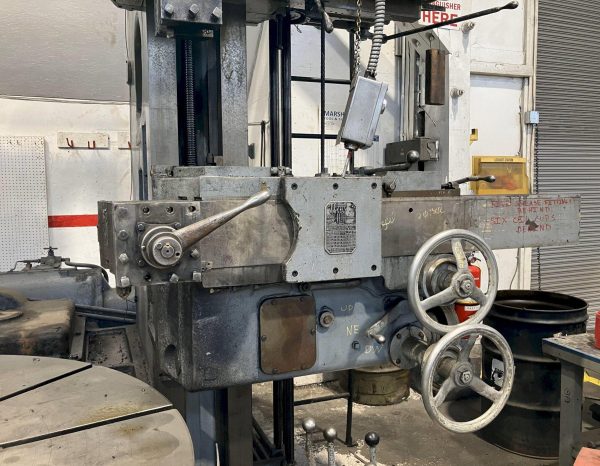

1 side head
Rapid Traverse On All Heads
4 Jaws on Chuck
Power Clamping on Rail
Power Elevation of Rail
