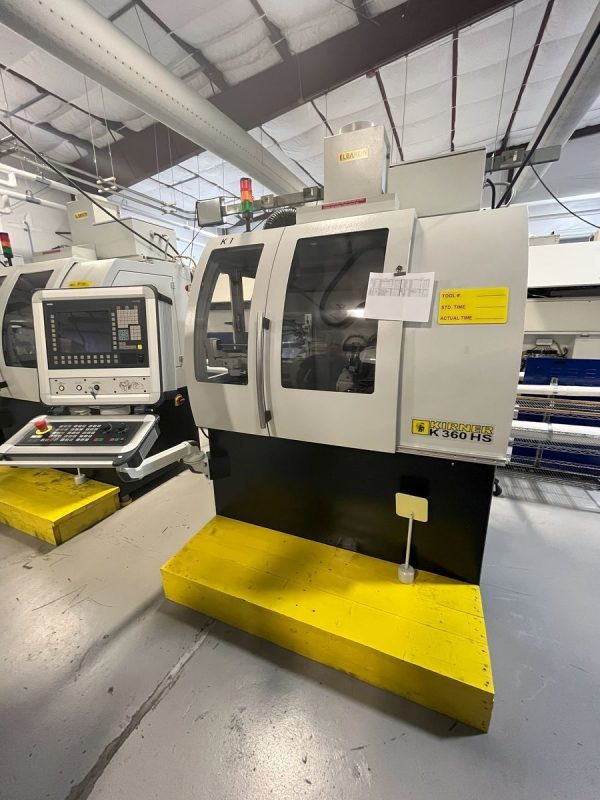

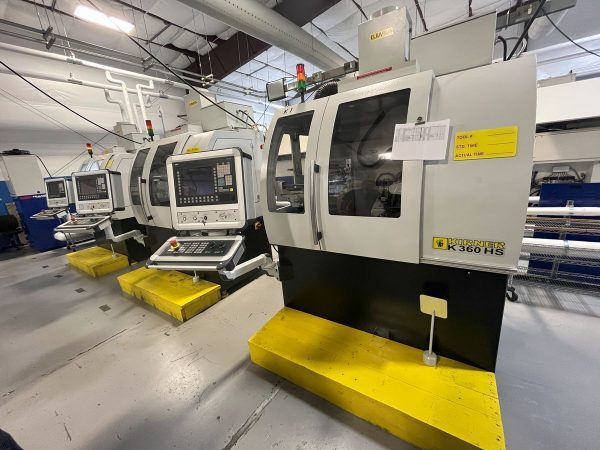

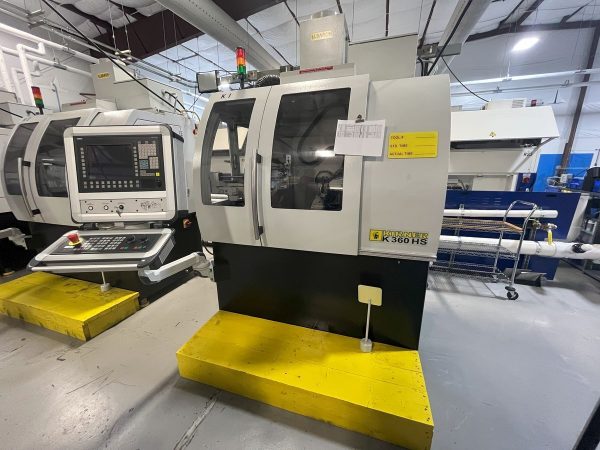

Kirner K 360 HS – Year 2017
CNC 9 Axis Tool Grinder

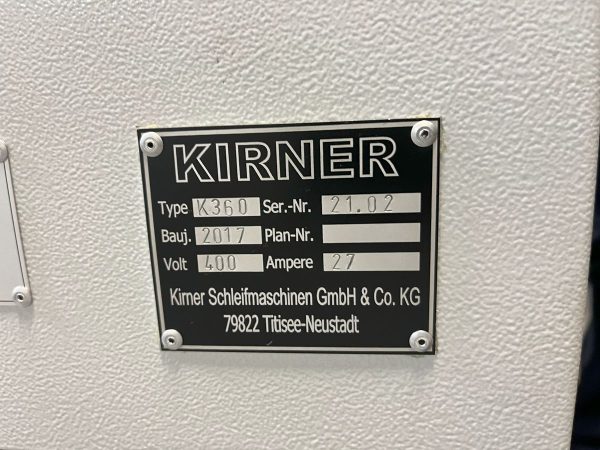

Brand: Kirner
Model: K 360 HS
Year: 2017
Approx. Shipping Weight: 2,400 KG
Approx. Shipping Dimensions: 1685 x 1180 x 2150 mm
Machine Specifications
Grinding Range Diameter: 0.4 – 26 mm
Machine Axis: 9 CNC Axis
X-Axis Travel: 115 mm
X-Axis Feed Rate: 12 m/min
Y-Axis Travel: 105 mm
T-Axis Feed Rate: 12 m/min
Z-Axis Travel: 150 mm
Z-Axis Feed Rate: 12 m/min
A-Axis Rotation: Unrestricted
A-Axis Rapid Speed: 100 RPM
B-Axis Rotation: 205°
B-Axis Rapid Speed: 30 RPM
C-Axis Rotation: 210°
C-Axis Rapid Speed: 50 RPM
Spindle Speed: 8500 RPM
Grinding Spindle: 60 x 160 mm
Grinding Wheels: max 150 mm diameter
Number of Tools in Loading System: 1020 Pieces
Diameter of Shank in Loading System: 0.5 – 8 mm
Loading System Drive: 2 CNC Axis
Equipped With

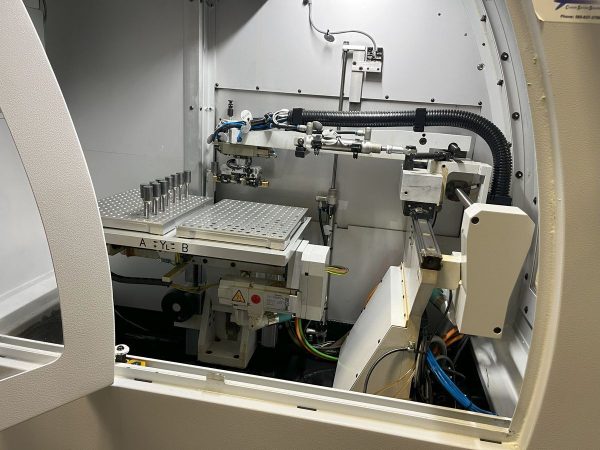

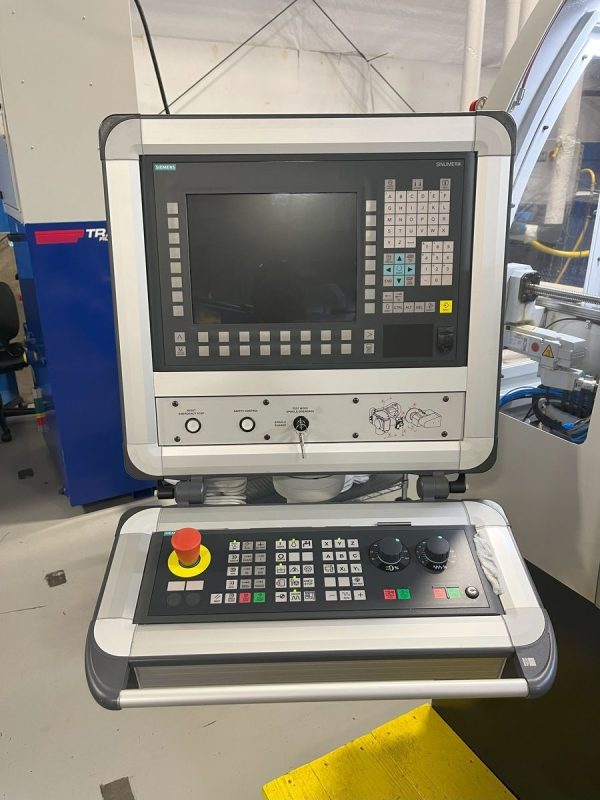

Siemens 840 D Control, Robotic Loading System
Machine can be demonstrated upon request.
