Description

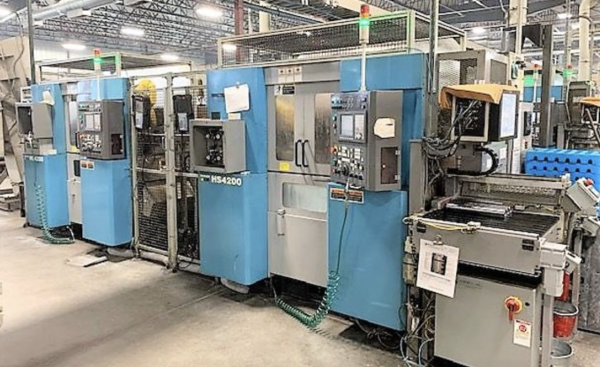

Brand: KITAKO
Model: HS4200N
Year: 2013
Specs:
Chuck Size: (4) 8″
Spindle Speed: (2 Spindles) 4,500 Each RPM
Spindle Motor: 20 HP
X Axis Travel: 6.3″
Z Axis Travel: 9.8″
Rapid Rate Z Axis: 945 IPM
Turret Tools: (2) 8 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 7.8″
Max Turning Length: 4″
Max Swing: 7.8″
Four Spindle Two Turret Indexing Spindle Lathe
Four Spindles, Two Working
Two Outside for Load / Unload
A2-6 Spindle Mount w/ 20/15HP Main Spindle Motor
Hand Scraped Box Slideways for X & Z Axis
1.5 Second Servo Spindle Carrier Index w/ 28.35″ Curvic Coupling
(3) Station Gang Slide
Spindle Air Blow for Chucks
Lift-Up Style Chip Conveyor
Flood / Flush Coolant for Machining Area
100PSI Standard Coolant Pressure
Tool Life Management
3-Color Signal Tower
Spindle Through Coolant for OP-10 (Qty 4 Chucks)
Part Seating Sensors (Air) for OP-20 (Qty 4 Chucks)
Automatic Timer for Air Shut-Off
Fanuc Ethernet FOCAS2 for Gauge Interface
(60) KVA for Each Machine with Automation
Dimensions: 97″ x 123″ x 99″
Weight: 15,000 LBS
2 Available For Sale
Options:
Fanuc Series
Chip Conveyor
(3) Station Gang Slide
Spindle Air Blow for Chucks
Flood / Flush Coolant for Machining Area
100PSI Standard Coolant Pressure
3-Color Signal Tower
Spindle Through Coolant for OP-10 (Qty 4 Chucks)
