Description

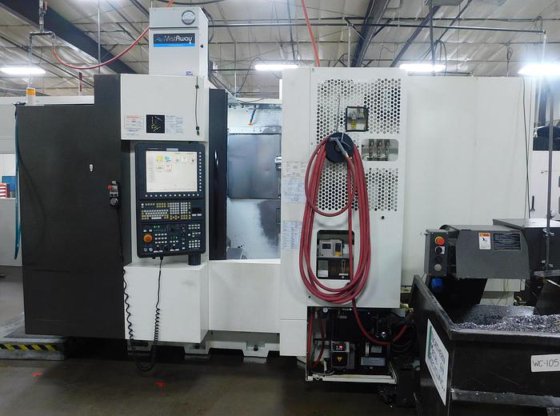

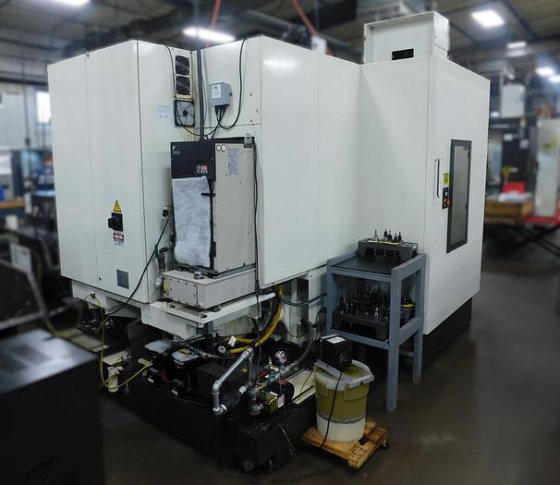

Kitamura HX400G CNC Horizontal Machining Center – Year 2014
Make: Kitamura
Model: HX400G
Year: 2014

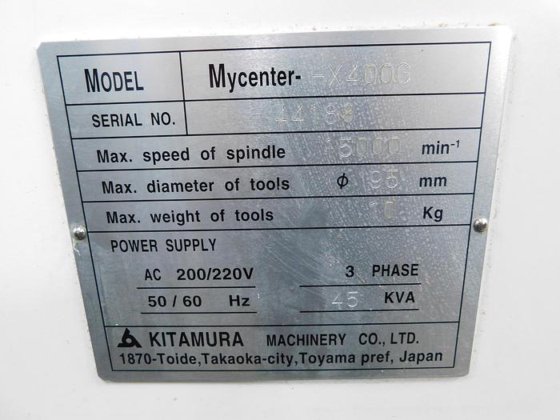

S/N: 44188
Controls: Arumatik-Mi
Table Size: 15.7” x 15.7” (400 x 400mm)
Travel (X, Y, Z): 28.9” x 24” x 24” (735 x 610 x 610mm)

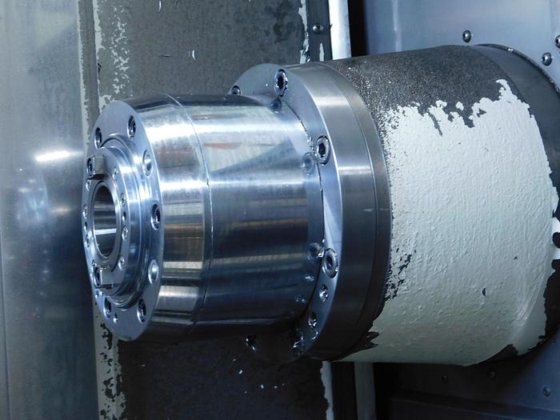

Spindle Taper: CAT40
Spindle Speed: 15,000Rpm
ATC: 50
Tool Change Time (T-T/C-C): 1.0 Sec. / 3.2 Sec.
Rapid Feed (X, Y, Z): 1,969ipm (50m/min)
Rapid Feed (B): 15,000deg./min.
Electrical: 3Ph, 200/220V, 45KVA
Machine Dimensions
CNC: 168″Lx106″Wx109″H
Coolant/Chip Conveyor: 125″Lx52″Wx55″H
Approximate Weight: 22,000Lbs

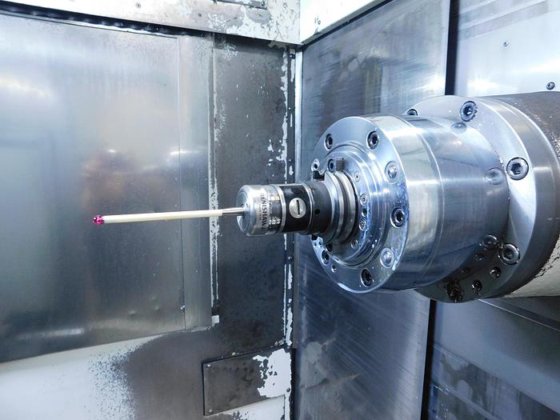

Includes: (2) 400mmx400mm Pallets, Renishaw OMP40 Probing System, Chip conveyor, Internal augers for exceptional chip evacuation, Hydraulic Chiller, 1,000Psi Coolant Spindle thru/Shower, Mistaway Collector and all available manuals.
Please Note: Machine Vises, Tombstones, CAT40 Tool Holders, and Tool boxes are Not Included
