Description

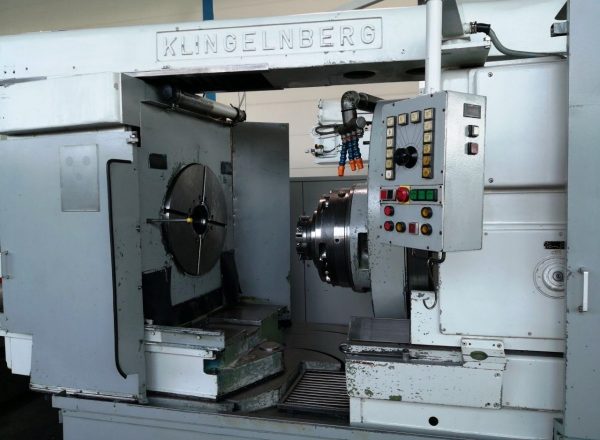

KLINGELNBERG AMKU 630
Bevel Gear Generator – Spiral type
New in: 1979
technical details:
Rad-Ý – max. 630 mm
gear width 100 mm
max. module 8 mm
min. module 3,5 mm
swival range +/- 0-90 °
distance of workpiece spindle-taper cone 315 mm
turning speed range 18-111 U/min
roll feed 1-50 °/min
plunge feed hydr. stepless 0,1-5 mm/min
electrics – voltage/frequency 380/50 V/Hz
total power requirement 30 kW
weight of the machine ca. 20 t
dimensions of the machine ca. 4,8 x 2,3 x 2,4 m
