KNUTH ORION 6TL CNC Lathe – Year 2021

Contact us for price

Category:

Description

KNUTH ORION 6TL CNC Lathe – Year 2021
with FANUC control
Complete with tools!

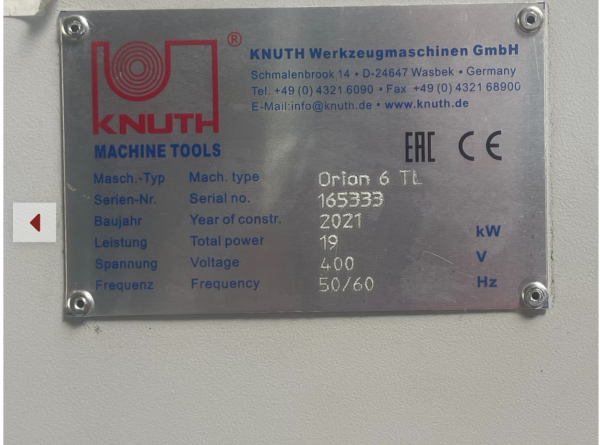

Manufacturer: KNUTH
Model: Orion 6TL
Year of manufacture: 2021
Control: FANUC 0i TF
Operating hours: 1,200 hours
Working area
Swing diameter over bed (max.): 480 mm
Swing diameter over slide (max.): 285 mm
Turning diameter (max.): 280 mm
Turning length (max.): 520 mm
Travel paths
X-axis travel: 165 mm
Z-axis travel: 520 mm
Inclined bed angle: 45 degrees
Main spindle
Bar capacity (incl. chuck): 44 mm
Spindle speed: 6,000 rpm
Spindle mount: A2-5
Spindle bore: 55 mm
Lathe chuck diameter: 150 mm
Rapid traverse
Rapid traverse X-axis: 30,000 mm/min
Rapid traverse Z-axis: 30,000 mm/min

Tool carrier
Tool carrier type: Servo
Number of tool positions: 10 pieces
Diameter of boring bar holder: 32 mm

Accuracy
Repeatability: ± 0.003
Positioning accuracy: ± 0.005

Tailstock
Tailstock quill diameter: 65 mm
Tailstock quill stroke: 80 mm
Tailstock cone: MK 4

Drive performance
Main drive motor power: 15 kW
Main drive, constant load: 11 kW
X/Z axis motor power: 1.8 kW

Dimensions & weight
Length x width x height: 2260 x 1670 x 1570 mm
Weight 3000 kg
