Description
L & L LC 34 x 120 CNC Flat Bed BIG BORE Lathe 3 Meters – Year 2009
Model LC 34
CNC control Fanuc OiTC
Serial number/YOM TLA203409129/2009
Swing over bed 34”
Swing over cross slide 20”
Center height 17.3”
Width of carriage 35”
Center distance 124”
Width of bed 22”
Spindle bore 10”
Spindle nose A-2-20
Chucks F&R Four jaw 24 O.D. x10.5” I.D.

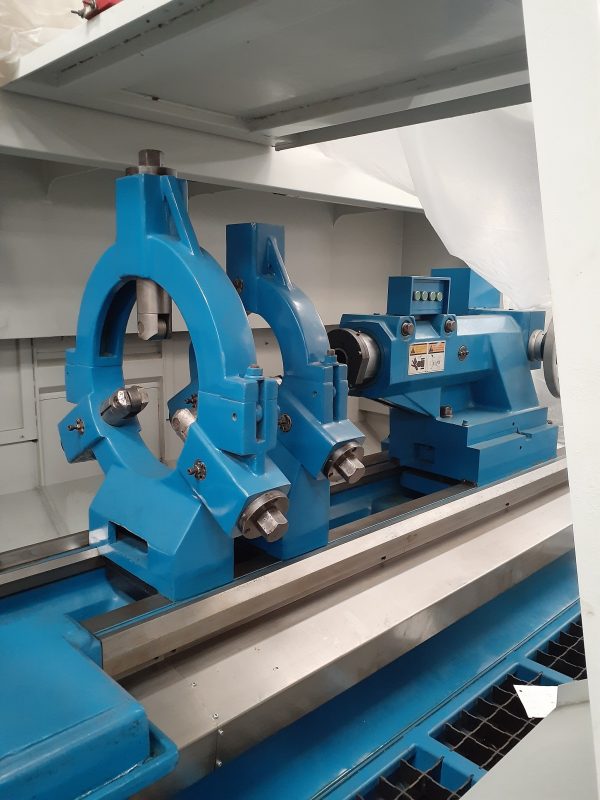

Steady rests (2) 12” & 18”
Spindle speed 4-400 rpm.
Tailstock center MT # 5
Main motor 30/37 hp.
Turret stations 4 stations
Tailstock quill diameter 6.4”
Tailstock center MT #6
Feeds:
X-axis 6M/min.
X-axis range 0.1mm/min—3000mm/min.
X-axis travel 20”
Z-axis rapid traverse 4M-6M/min.
Z-axis range 0.1mm/min—3000mm/min.
Z-axis traverse 157”
Coolant Yes
Chip conveyor Front chip pan & Rear chip conveyor
Guards Front door and rear splash guard
