Description

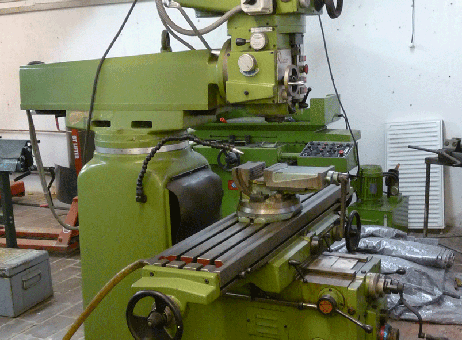

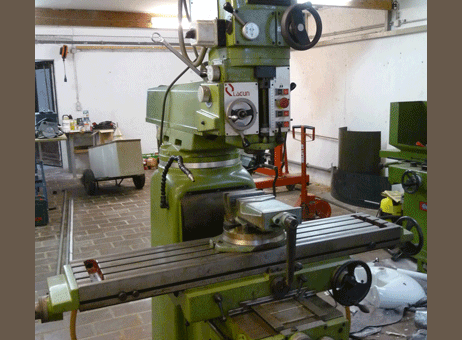

Multi-purpose milling machine make Lagun FTV-5 little used with machine vice – adjustable – and with 25 different shots for sale.
As standard with mechanical feeds and rapid feeds in 3 axes
3 automatic quill feeds
manual central lubrication
stepless speed range of the work spindle
Quill hard chromed
Precision spindle bearing
spindle protection
contactor control
Coolant system
Coolant and chip collecting tray
Laterally covered table
Technical data:
Table size 1372 x 280 mm, number and width of the T-slots = 3×16 mm,
Distance between the T-slots = 63 mm,
Longitudinal feed automatic = 800 mm, cross travel automatic = 345 mm
Vertical travel automatic = 400 mm, counterholder adjustment = 480 mm
Number of feeds = 12, feeds longitudinal and transversal 12-576 mm, vertical = 3.6 – 173 mm
Rapid traverse longitudinal and transversal 1650 mm, vertical = 500 mm
Spindle revolutions stepless = 60 – 4000 rpm, spindle head can be swiveled left and right = 90 degrees
Quill feeds 0.04-0.08-0.16 mm, taper = ISO 40, quill stroke = 150 mm, quill diameter = 110 mm
min./max. Spindle center / stand distance = 170-650 mm
Max. Distance table / Sindel = 405 mm
Drive power spindle 5.5 hp, feed motor = 1.5 hp
Max. Workpiece = 250 kg
Net weight = 1600 kg
The machine is sold privately !!! Price without VAT
The machine is in a backyard building and must be brought to the street by hand. There are also no hoists available for loading.
Maybe I can organize a truck crane, it costs about 100 euros.
