Description

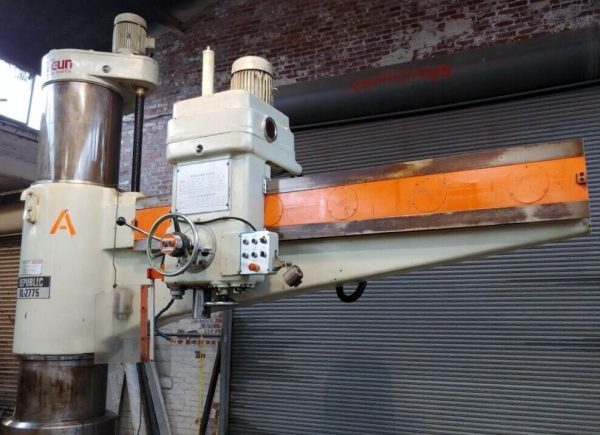

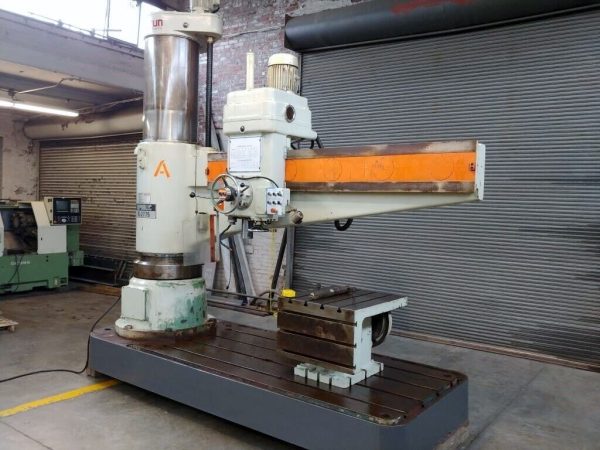

LAGUN RL-2775 Radial Arm Drill – Year 2007

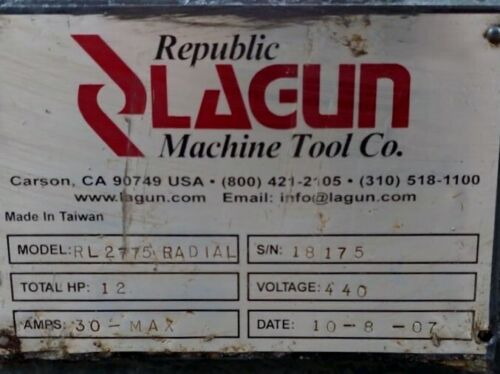

Brand LAGUN
Model RL-2775
Date of Man. 10-8-07
10 HP Two Spd Motor w/ Auto Spindle Brake
Pre-Selection of Spindle Speeds
Hydraulic Clamping on Column Arm & Head
Built In Clutch for Hi Spd Spindle Reverse when Tapping
Power Arm Elevation w/ Anti Fall Device
Hardened & Ground Arm Ways
Box Table w/ dims 39.4″ x 31.5″ x 22″

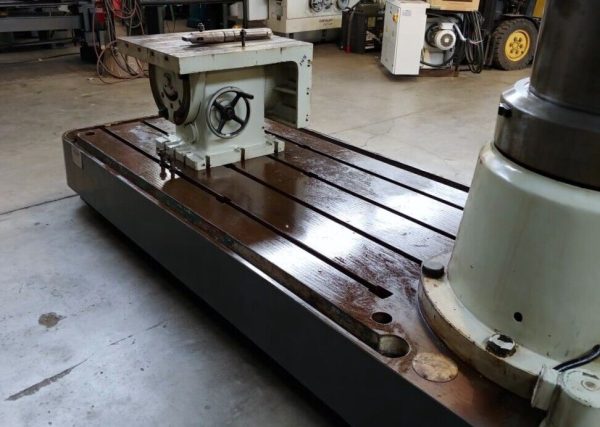

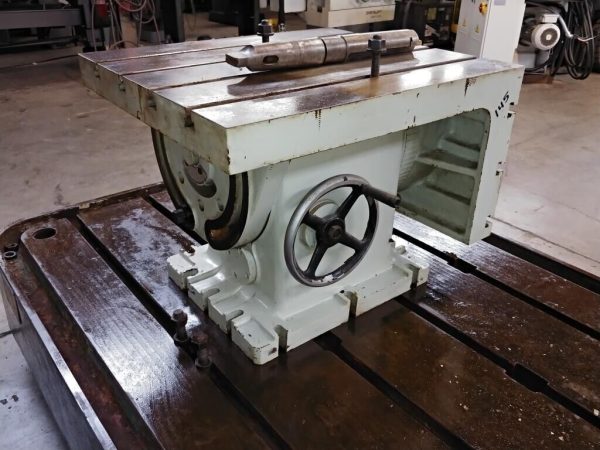

Additional Uni-Tilt Box Table w/ 90 Deg. Tilt w/ dimensions of 32″x28″x24″
Work Light
Flood Coolant
Column diameter 21.7″
Column Surface to Spindle Center-Min. 19.7″
Column Surface to Spindle Center-Max. 98.4″
Travel of head on arm ways 78.7″
Spindle Face to Base Top, Min./Max. 21.7″/ 78.7″
Arm Travel on Column (Elevating Height of Arm) 39.4″
Base and Column Height 151.6″
Machine Height From Floor – Max. 157.1″
Effective Area of Box Table 39.4″x 31.5″x 22″
Dimensions of base 138.6″x 55.1″x 12.6″
Shipping dimensions 157.5″x 63″x 151.6″
Spindle
Spindle Taper MT #6
Stroke of Spindle 17.7″

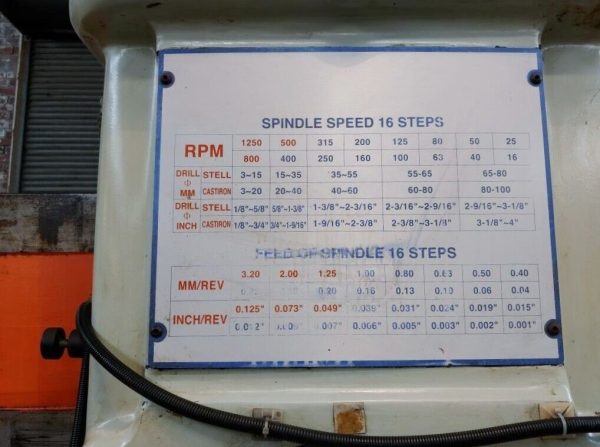

Spindle Speeds (RPM x Steps) 16 to 1,250 RPM x 16
Spindle power feeds (Rev. x Steps) 0.002″ – 0.13″ x 16
Motors
Main motor, direct drive 10 HP
Arm Elevating motor 5 HP
Clamping Motor Manual 1 HP Hydraulic
Coolant pump motor 1/4 HP
Weights
Approx. Net Weight 24,251 lbs
