Description

Very complete production machine for cutting metals standard size 3000 x 1500 mm up to 6000 x 2500 mm. Equipped with safety housing and exchange table for fast efficient and safe loading and unloading of materials. Worldwide installation service including training and certification.

always safe and secure

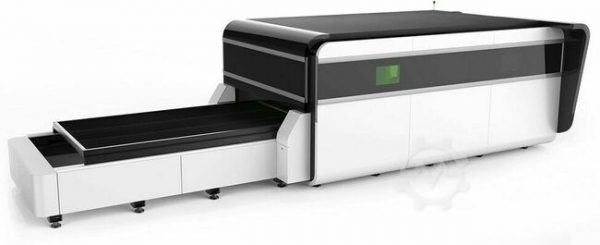

Fiber laser “Melody” is a complete metal cutting factory. The portal laser is completely surrounded by a class-1 safety housing and the machine is equipped with a fully automatic electric change table for safe and efficient loading of materials. The complete machine is laser class 3R in accordance with European Standard 60825-01. It is with this machine under normal circumstances no need to wear extra personal protective equipment.This machine can be placed anywhere (including schools and public workshops) without additional measures.

including free remote control

This fiber laser comes with radio remote control for quick and easy positioning in X, Y and Z direction, The remote control also gives direct access to the functions: automatic focus height search, auxiliary gases blow through, dry testing, contouring, pausing and stopping.

You will soon notice that you can work more efficiently and precisely with the remote control and never want to go without it again. The remote control is magnetic and can be hung anywhere on the machine.

including computer controlled cooling tower

Cooling is very important for your fiber laser, so we supply a very high-quality fully automatic cooling machine with 2 separate cooling circuits. As a result, the laser source and the laser head with the lenses are kept separately and very precisely at their own temperature.

The cooling tower is fully pre-programmed and pre-installed and is operational within 10 minutes. Naturally, the cooling tower communicates directly with the laser machine. In the event of an alarm, the chiller will immediately switch off the laser source to prevent damage to the laser.

including extraction system or automatic filter system (option)

You don’t want to leave metal vapors in the workshop. That is why this fiber laser comes standard with a very powerful cyclone volute extraction system with which all vapors are extracted directly from the machine and blown to an existing filter system or to the outside.

Optionally, this fiber laser can also be equipped with our digitally controlled HEPA recirculation filter systems, which saves a lot of energy and completely relieves the environment. There is even a VAMIL on these machines environmental subsidy possibly causing the costs to be very low.

very extensive software including training

This metal laser cutter comes standard with the very powerful CYPCUT controller system for programming your cutting jobs. Cypcut works intuitively enough to get started right away, but has many professional functions, which you normally have to buy separately, already built-in. So has cypcut automatic nesting functions to efficiently organize plates, extensive lead in / out options, micro joints, fly-cutting , pierce functions and extensive cutting settings. Of course you can directly control almost all possibilities of the fiber laser from cypcut. For example, you can control the entire CNC system, regulate gas types and pressures, control the laser source remotely and possibly take over a BCS100 system.

complete installation and on-site training

All our fiber laser machines are installed on site by our own technicians as standard. Fiber lasers are extremely complex and must of course also be installed, programmed and calibrated very precisely during installation. Our technicians can rely on very specific training and experience.

After installation, the technician will first create a complete materials library for you and you will also receive the 1st training and explanation of the machine from our technician. We do the training in the language that you prefer, or in the Dutch, English, German, French, Russian or Chinese.

automatic computerized height controller

The BCS100 is an advanced system to automatically and dynamically adjust the height of the laser head above the metal sheet – even while cutting. The quality of the cutting edge stands or falls with good height control, which is why we chose the best possible combination of Cypcut and BCS100 at lasergraaf. curved and curved plates are no longer a problem. The laser head measures thousands of times per second and automatically follows the plate.

automatic plate-edge detection

With the built-in BCS100 system it is also possible to have the edges of the sheet material searched fully automatically and the software to automatically compensate for skewed plates. Never askew again cut objects or cut next to the plate.

Finally, the system is equipped with extensive self-checking and self-calibration, so that the system fully adjusts and automatically adjusts itself.

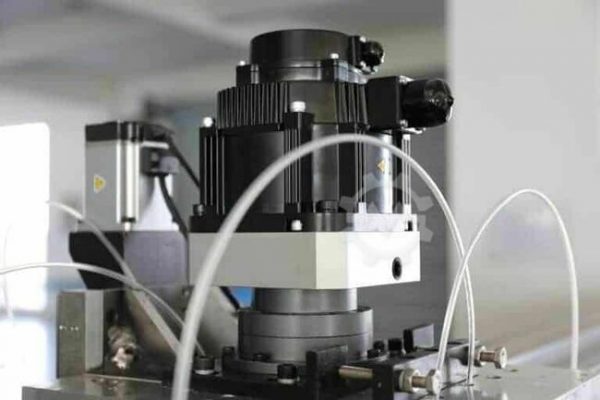

Intelligent laser head with “pre-sense” technology

Material that blocks the laser path? Cut pieces that pop up? Plates that are not flat? No problem with the standard built-in automatic control. This machine is equipped with a Swiss Raytools cutting head that measures where it is relative to the material thousands of times per second. If the material is curved or warped, the Raytools head follows the material effortlessly to within 0,003 mm.

PRE-Crash detection

When cutting loose shapes, the object sometimes rises or tilts, causing a crash with the laser head. No problem for our automatic control. The raytools cutting head with built-in intelligence sees a crash hazard well in advance and automatically stops before accidents happen. The laser head moves to a safe position, and the traffic light on the machine signals the machine operator to straighten or remove the tilted material.

computer controlled solid state laser source

Of course, the laser source is the heart of the fiber laser machine and of course we only choose the best of the best. We recommend the Raycus fiber laser sources as standard. These systems are very stable and have one MTBF of up to 80.000 hours. Optionally, we can also implement the machine with an IPG laser source for highly reflective materials. These brands lead the top of the fiber laser market.

The laser source itself is completely solid-state, so no moving parts and completely maintenance free. The powerful built-in computers fine-tune the pulse frequencies, pulse lengths and power curves.

Wireless control & Hi-Res monitor

The operation of the machine is very simple and runs standard on the built-in windows OS operating system in combination with the very powerful cypcut controller system. Everything can be set up and started clearly and intuitively via the wireless keyboard, mouse and handheld laser control.

This machine comes standard with a portrait mode high resolution controller hub on the swivel arm.
