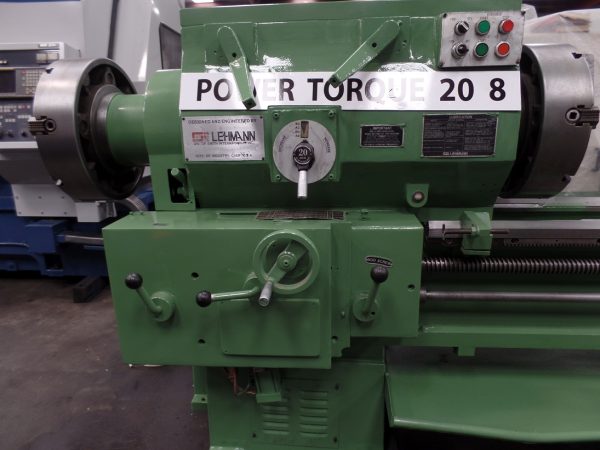

LEHMANN Power Torque 20-8 Hollow Spindle Oil Country Engine BIG BORE 7 Inch Lathe 3 Meters

Contact us for price

Description

LEHMANN Power Torque 20-8 Hollow Spindle Oil Country Engine BIG BORE 7 Inch Lathe 3 Meters
Specifications:
Model 20–8
Serial number 200715–180
Swing over bed 20 ”
Swing over cross slide 11 ”
Distance between center 120 ”
Tool post Aloris type, 2 sided
Bed width 16”

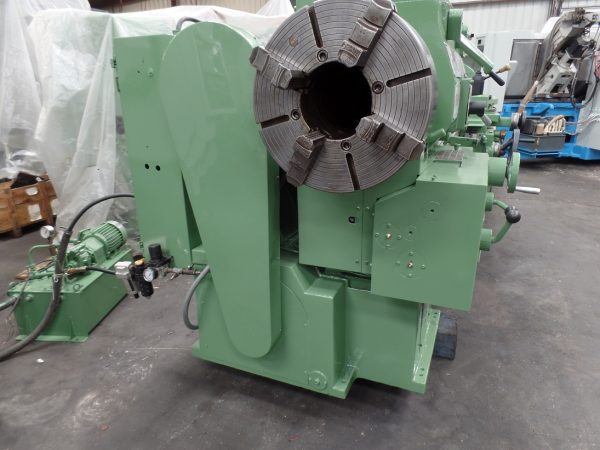

Chuck F&R 18” 4-jaw chucks with 7” bore
Spindle bore 7”
Spindle step 16 steps
Spindle speed 16–556 rpm
Main spindle motor 25 hp
Pitch of lead screw 3 TPI
Air kickout Yes
Taper attachment Yes
Tailstock quill traverse 6″
Tailstock quill diameter 3”
Steady rest 12” roller rest
Coolant pump Yes
Machine weight 14,000 lbs. apx.
