Description

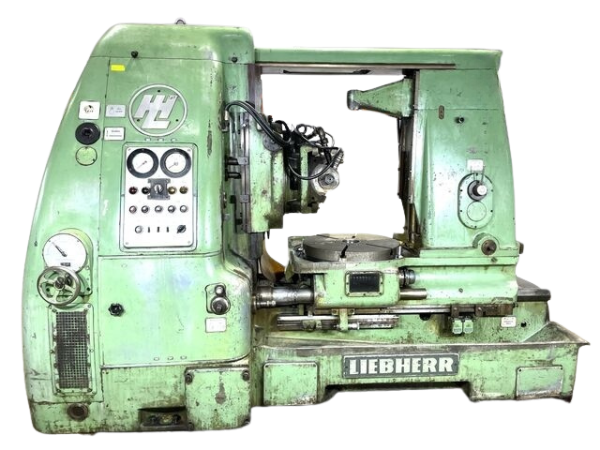

Liebherr S800 Gear Hobber
Gear hobbing machine LIEBHERR / LORENZ S800
-Max. workpiece with counterholder 600mm
-Max. Workpiece with retracted counterholder 800mm
-Max. Travel of the milling slide 360mm
-Largest possible milling pitch with largest workpiece 5Pi in normal power range 8Pi
-Receiving cone / milling spindle MK5
-Milling arbor 22/27/32/40mm
-Max. Milling cutter diameter 186mm
-Max. cutter length 170mm
-Max. cutter displacement 80mm
-Milling cutter speeds 40-220 rpm
-Feed rates infinitely variable / vertical
-Infinitely variable feeds / horizontal
-Infinitely variable feeds / tangential
-Clamping table without water rim 550mm
-Clamping table bore 100mm
-clamping cone mandrel MK 5
-clamping mandrel 36mm
ACCESSORIES:
-1xpallet of change gears
-1x pallet of hobbing cutters
-1x pallet of mandrels
-Documentation / machine feet
Dimensions:
LxWxH 3,6×1,8×1,9 meter / weight 5500Kg
