LK Machinery HT-630 – Year 2012

Contact us for price

Description

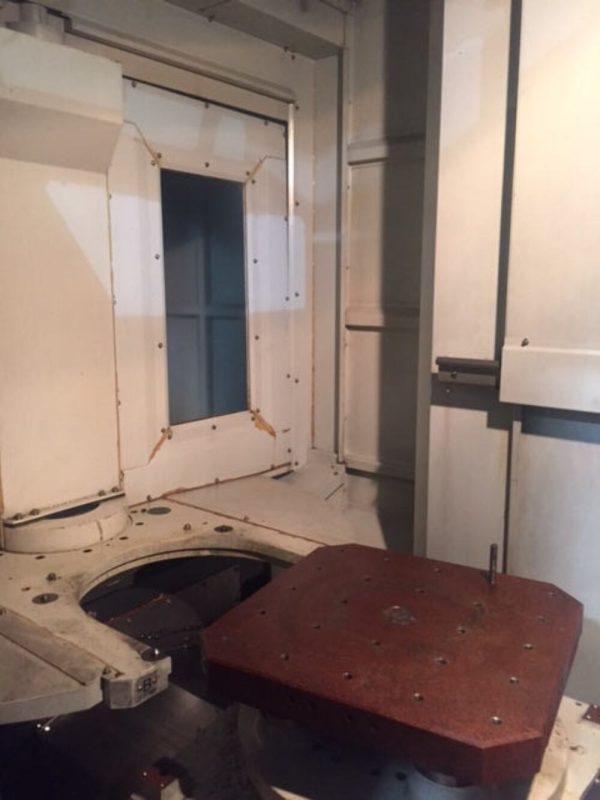

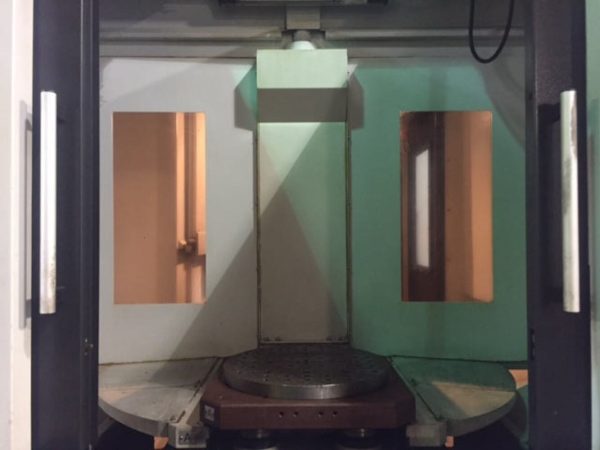

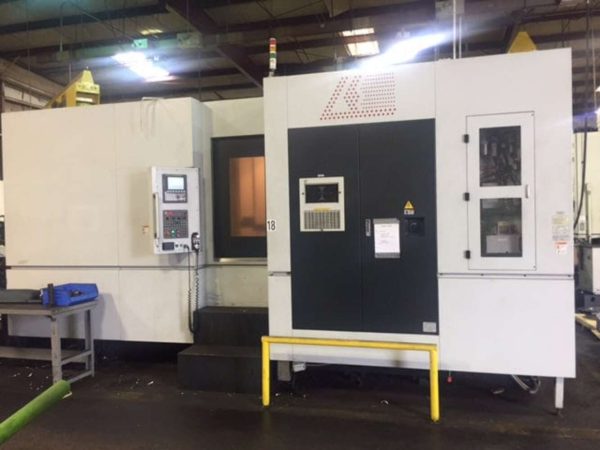

LK Machinery HT-630 – Year 2012
CNC Horizontal Machining Center with 2 Pallet

Fanuc Series 0i MD CNC Control
High PSI Coolant thru spindle (300-500 psi) 2 Pallet
Spindle Taper: #50
60 ATC
Degree Indexing: .001 Deg
Main Spindle Motor: 35 HP
Spindle Speed: 7000 RPM
Z-Axis travel: 39.4″
Y-Axis travel: 35.4″
X-Axis travel: 41.3″
Distance From Spindle Center to Table: 4.7″ – 40.1″
Spindle Nose to Center of Table: 6.1″ – 45.5″
Pallet Size: 24.8″ x 24.8″
Max Table Load Capacity 2645 lbs. per table.
Low Hours

Equipped with:
CTS
Spindle Tool Change Air Blow
Water Curtain
Coolant Flush System
Separate Hand Wheel (MPG)
Full Chip Enclosure
Heat Exchanger
Chip Conveyor
