Description
LVD Strippit Lynx FL 3015 – Year 2019
Fiber Laser – Low Hours!
2000-Watt Lvd-Strippit Model Lynx Fl-3015 Fiber Laser, New In
Equipped with 2kw Ipg Fiber Resonator (Source/Engine)
510-Lvd-Fiber-Chiller-Dust-Collector
3145 Working Hours.

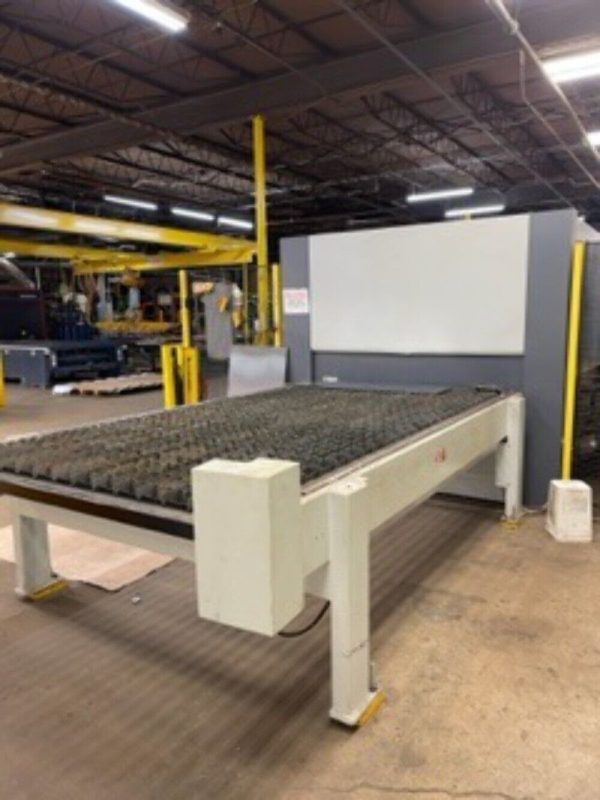

Lvd-Strippit Lynx Fiber Laser
2000-Watt Ipg Fiber Resonator.
Factory Installed New Head in 2021.
Machine Specifications
Maximum Sheet Size: 120″ X 60″
X-Axis Travel: 121″
Y-Axis Travel: 61″
Z-Axis Travel:
Upper Table: 3.1″
Lower Table: 9.5″
Maximum Sheet Weight on Table: 1,598 Lbs.
Table Changeover Time: 26 Sec.
Repetitive Accuracy: +/- 0.001″
Positioning Accuracy: +/- 0.002″
Chemical Suppression System.
Machine Dimensions
Max Sheet 60 X 120
Height: 8′
Weight: 27,558 Lbs.
Laser Specifications
Type: Ipg 2kw
Maximum Cutting Performance: 2kw
Mild Steel: 1/2″
Stainless Steel: 1/4″
Aluminum: 5/16″
Copper: 5/32″
Brass: 5/32″
Cutting Head: Precitec Light Cutteer
Machine on Hours: 3,145
Equipped With
15″ Touch L-Cnc Siemens Control, with Siemens Drives and Motors
Control Memory Capacity: 1 Gb Ram 2 X 4 Gb Flash
Manual Focus Cutting Head Precitec Lightcutter with 200 Mm Lens
Manual Safety Door and Enclosure
Chiller

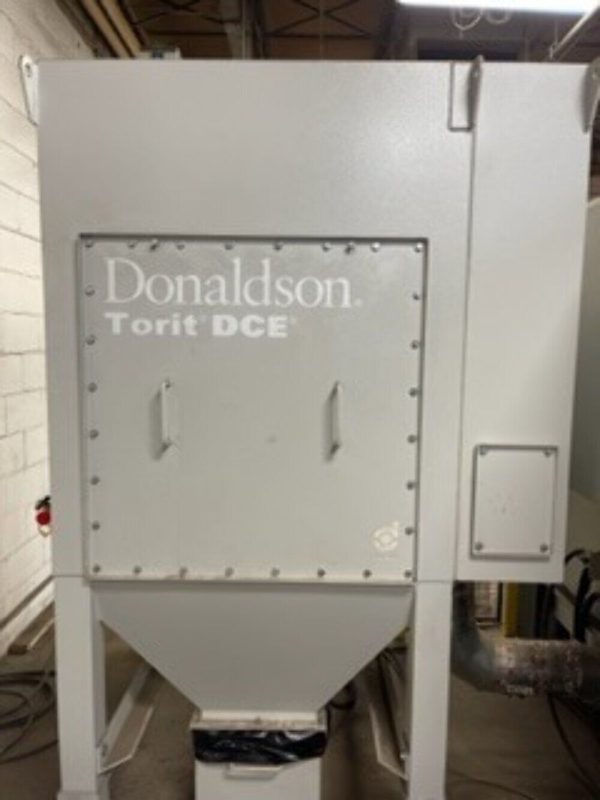

Dust Collector
Includes a $5,000.00 Clean Box for Changing Lens’ or the Head
