Description
| X Axis | 800 mm |
| Y Axis | 450 mm |
| Z Axis | 500 mm |
| CNC | MAHO MH-C 800 |
| Max. spindle speed | 2000 rpm |
| Table length | 1000 mm |
| Table width | 1000 mm |
| Max load on table | 450 kg |
| Spindle taper | ISO40 |
| Spindle motor power | 22 kW |
| Overhauled | yes |
| Year of overhauling | 2018 |
| CNC Milling 4 Axes | |
| Length x width x height | 2900.0 × 2200.0 × 2200.0 |
| Weight | 4500 kg |
| Worked hours | 300 hours |
| Hours under power | 300 hours |
| State | rebuilt |
Machine parameters:
Axes: X, Y (vertical spindle), Z (horizontal spindle), B (rotary table)
Axis ranges:
X – 800mm
Y – 450mm
Z – 500mm
B – fully rotating
Axis accuracy: 0.001 mm, 0.001 degrees
Taper of both spindles: ISO 40
Tool clamping of both spindles: Hydraulic

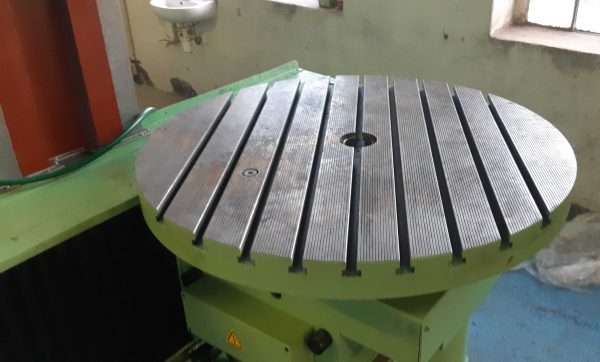

Clamping table diameter: 1000 mm
Maximum workpiece weight: 450 kg
Maximum spindle speed: 2000 rpm
Maximum feed rate: 6000 mm / min
Control system: Siemens SINUMERIK 810M
Computer connection: USB, RS232
Length x width x height: 2200 mm × 2900 mm × 2200 mm
Weight: 4500 kg

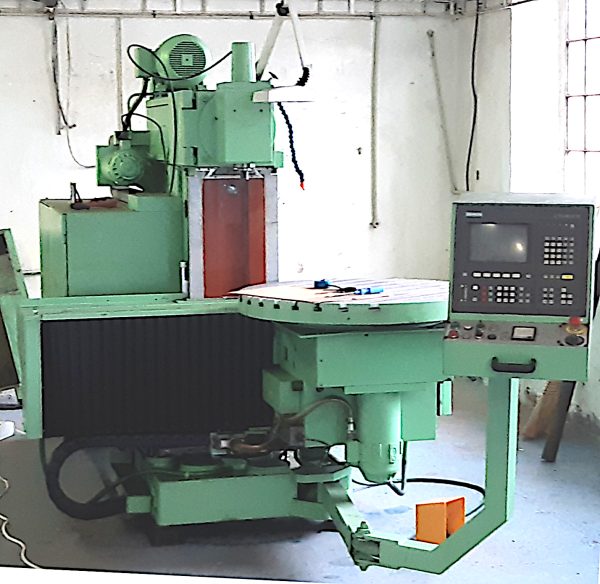

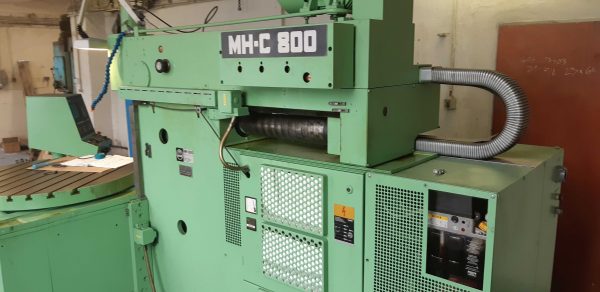

4-axis CNC milling machine MAHO MH-C 800, including a rich set of tools, jigs, fixtures and accessories (solid vices, fixtures, etc.), including two new sheet metal workshop cabinets. The spindle is mounted both horizontally (horizontal) and at the same time the original vertical head is installed on the machine. The machine has a system for cooling the workpiece with cutting fluid (the photos do not show the gutter part around the table for fluid drainage, but it is included in the price).
The machine is in 100% condition. In 2018, a renowned company performed a complete GO. Since then, the machine has worked only about 300 operating hours on light tasks.
The machine has COMPLETELY COMPLETE documentation, namely:
Electrical connection of the machine
Mechanics
Hydraulics
Control system documentation
Programming documentation
etc.
