Description
Mahr MarShaft SCOPE 250 plus – Year 2019

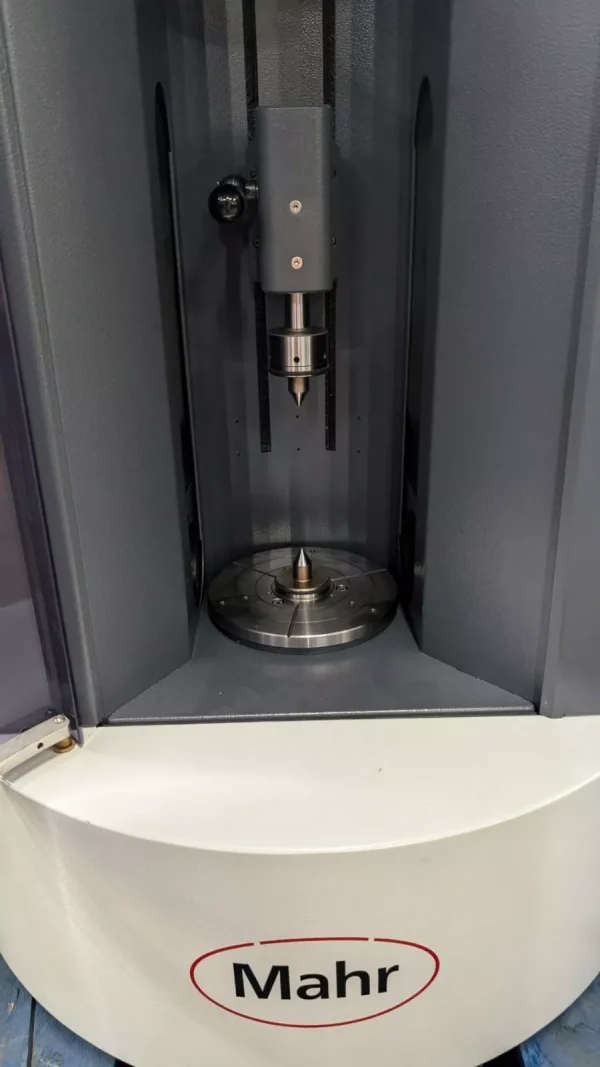

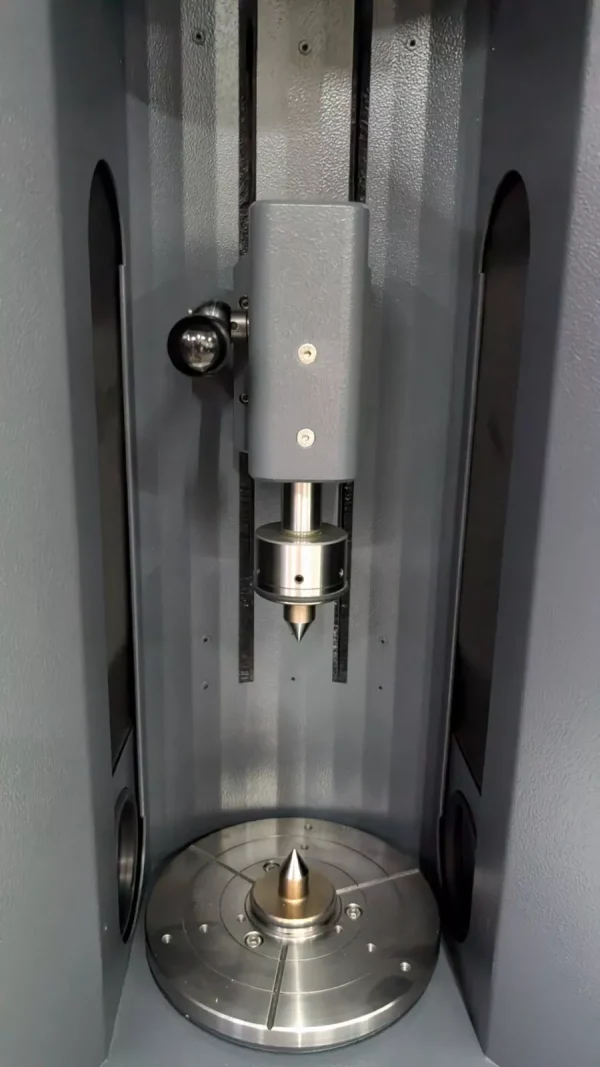

Fully Automatic Optical Shaft Measuring System with computer & monitor Mfd 2019 in mint condition

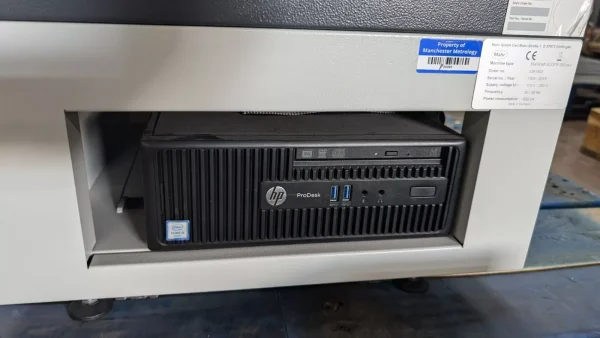

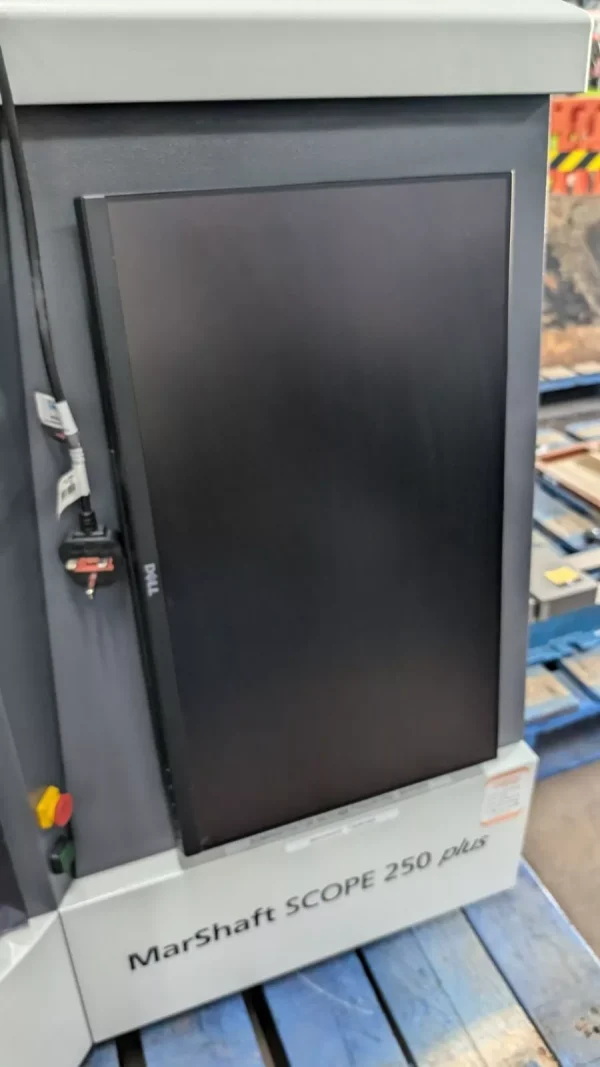

in mint hardly used condition , incorporating HP Computer and Dell Monitor. Includes some tooling
Manufacturer Catalogue Information about MarShaft SCOPE 250 plus :
Flexible solution for fully automatic measurement of rotationally symmetrical workpieces
The MarShaft SCOPE 250 plus is used for optical quality assurance of small rotationally symmetrical workpieces. Operators benefit from the high measurement accuracy and speed of the built-in matrix camera, among other things. The measuring station is designed for the smart production of Industry 4.0: Measurements are fully automated and workpieces can optionally be started via barcode reader.
The role of dimensional metrology is expanding dramatically in line with innovations in production processes. Given the increasingly stringent precision requirements and the reduction of production times in manufacturing (turning, milling, grinding, etc.), it is essential that measurement is carried out quickly, directly on the machine where production is taking place. Measurement at the point of exit of the product with fast feedback to the production process to avoid waste. The flexible MarShaft SCOPE 250 plus spindle measuring machine from Mahr offers the right measuring solution for fast, precise and fully automatic measurement of rotationally symmetrical workpieces in production.

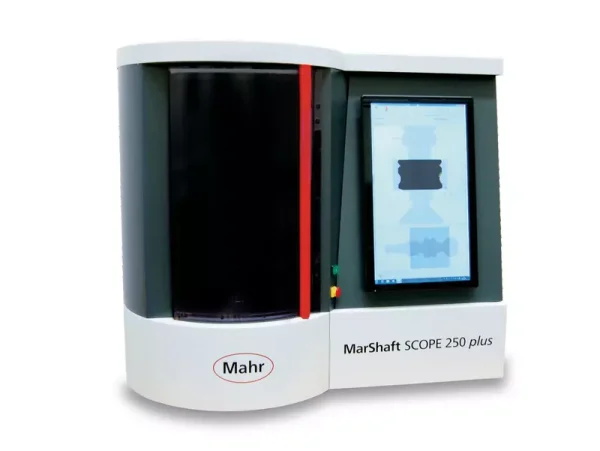

MarShaft SCOPE 250 plus

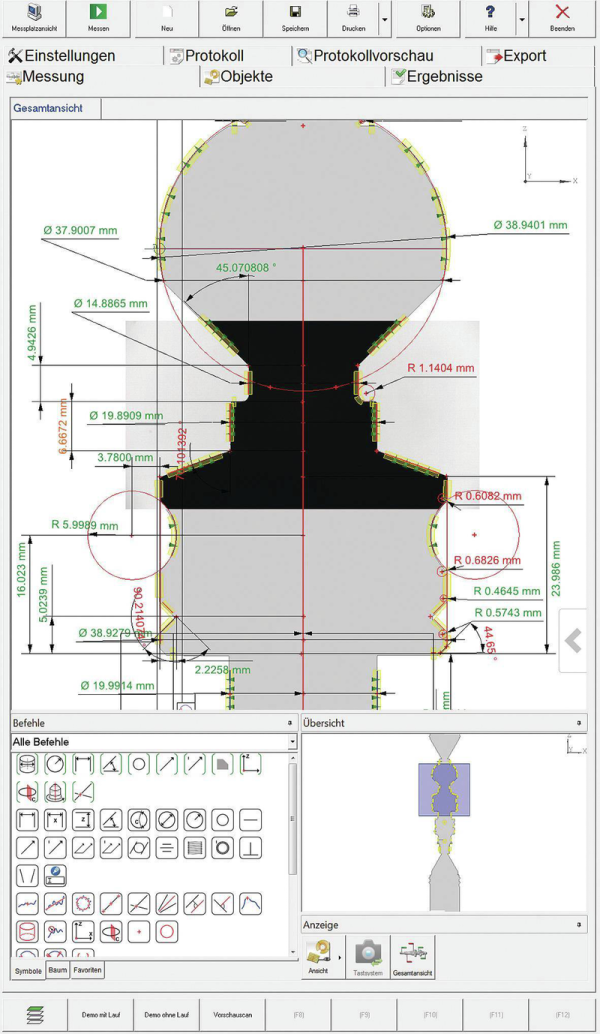

The main measurable features
• Length
• Diameter
• Form and position tolerances
• Offsets
• Recess width
• Bevel width
• Intersection points
• Position of intersection points
• Radii
• Position of radii
• Taper lengths
• Hole contours
• Angles
• Pitches
• Widths across flats
• Outer threads
