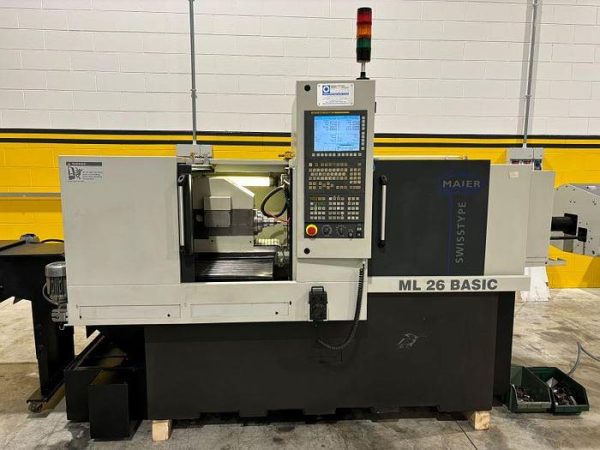

MAIER ML 26 BASIC CNC Swiss Lathe – Year 2012

Contact us for price

Description

MAIER ML 26 BASIC CNC Swiss Lathe – Year 2012

MAIER ML 26 CNC FANTINA Lathe

YEAR 2012

AXES: 7

MOTORIZED + COUNTER SPINDLE

TECHNICAL DATA

Main spindle, bar capacity: 26 mm

Maximum working length: 220 mm Working length: 220 mm / 340 mm

Translation distance: 220 mm

Spindle speed: 8000 rpm

Spindle drive power: 7.5 kW

C-axis resolution: 0.001°

Counter spindle, bar capacity: 26 mm

Spindle speed: 8000 rpm

Spindle drive power: 7.5 kW

Resolution, C-axis: 0.001°

Front attachment:

Number of tools: 9

of which operated: 6

Rear attachment:

Number of tools: 4

of which operated: 4

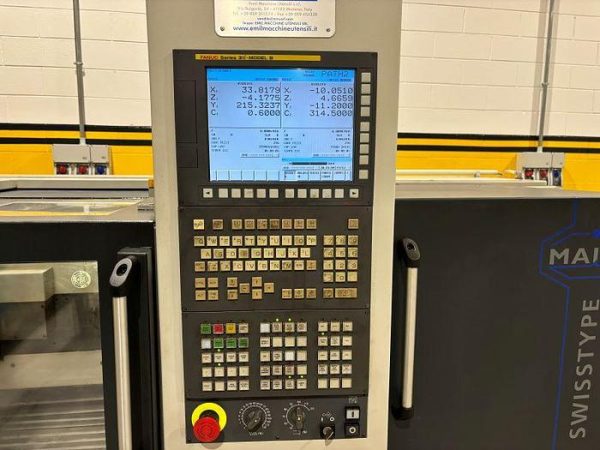

Control System: Fanuc Series 31i – Model B

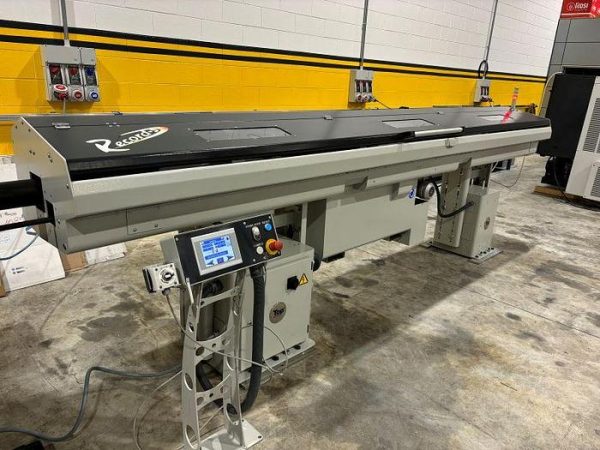

Bar loader TOP AUTOMAZIONI YEAR 2015

Chip conveyor

transformer

Coolant tank
