Description
Mazak 3D Fabri Gear 220-II CNC Tube Laser 4kW – Year 2013
Control: Mazak FX Control Unit
Resonator Type: CO2
Resonator Make: Panasonic
Laser Output: 4.0 KW
Laser Gas: He, N2, Co2
Max Material Thickness (Mild Steel): 0.866”
Max Material Thickness (Stainless): 0.393”
Max Material Thickness (Aluminum): 0.314”
Max. Workpiece Length Load/Unload: 315”
Max. Material Diameter Round: 8.66”
Max. Material Diameter Square: 6.00”
Max. Workpiece Weight/Piece: 787 Lbs.
Stroke X Chuck Left/Right: 356.5”
Stroke U Chuck Left/Right: 353.90”
Stroke V Chuck Left/Right: 91.14”
Stroke Y Head Back/Forth: 38.78”
Stroke Z Head Up/Down: 14.57”
Stroke A Head Rotation: ±99,999.999 Deg.
Stroke B Head Swing: ±135 Deg.
Equipped With:

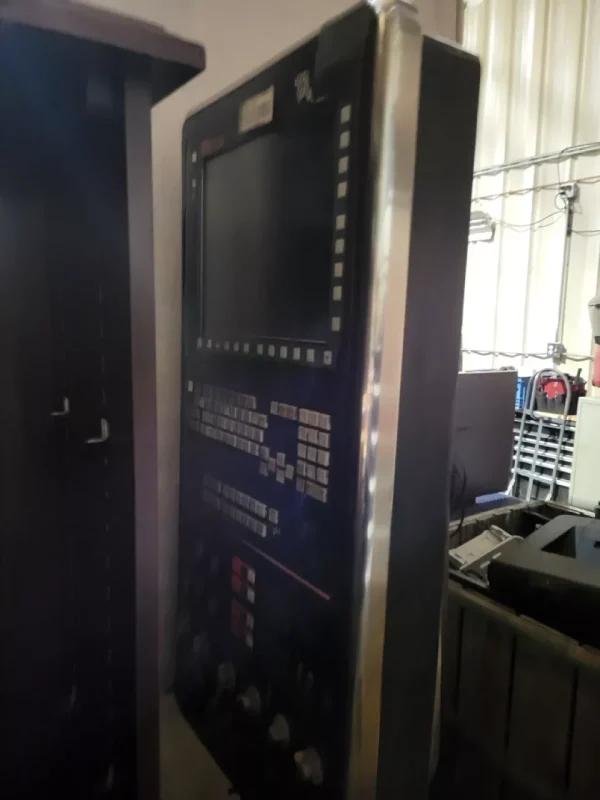

Mazak FX Control Unit
4.0 KW Panasonic Resonator

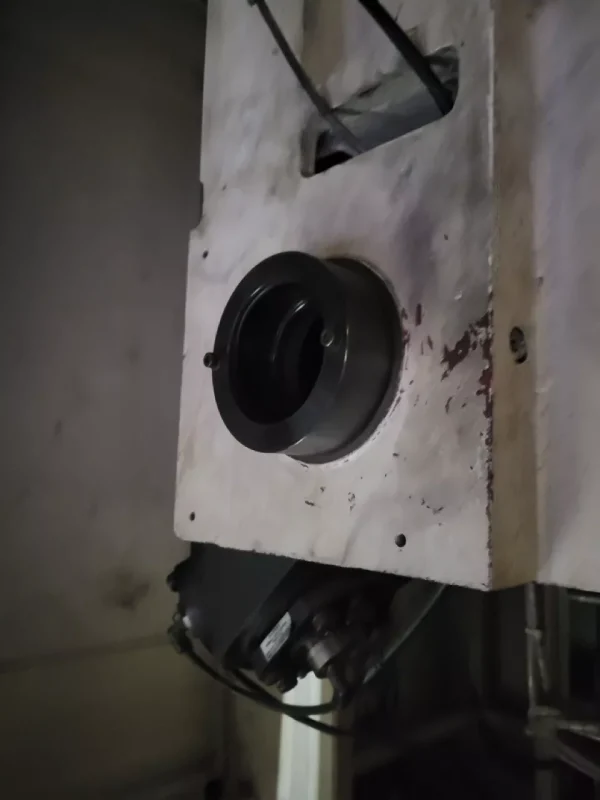

3D Laser Rotary Head
Auto Focus Positioning
7.5’ Lens
Four Clamping Chick System
Loading/Unloading System
Parts Catcher
Programmable Assist Gas Pressure
USB Port For Personal Computer
LAN Connection Function
Automatic Power Cutoff
AC Digital Servo Motor Drive System
Ball Screws For Y,Z-Axis

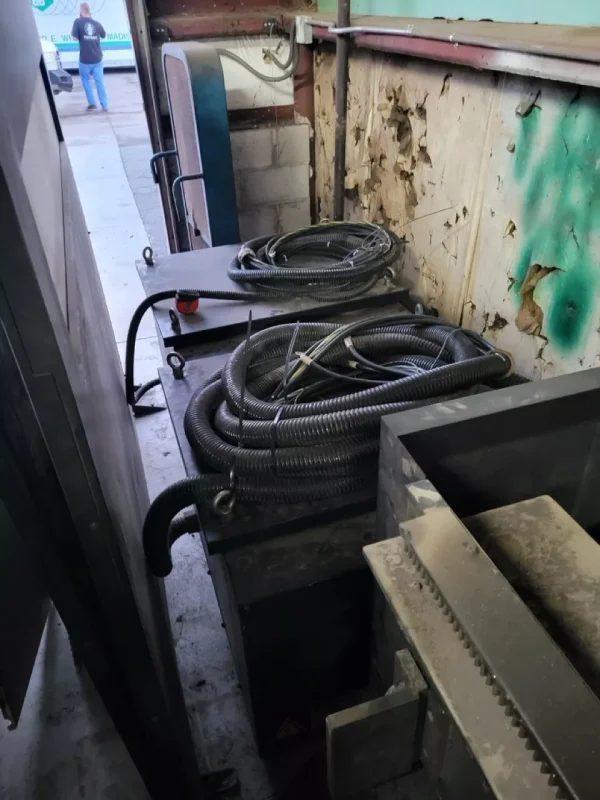

Rack And Pinion For X-Axis
Multi-Tap Transformer (208v To 480v)
Chiller Unit
RoboVent Dust Collector
