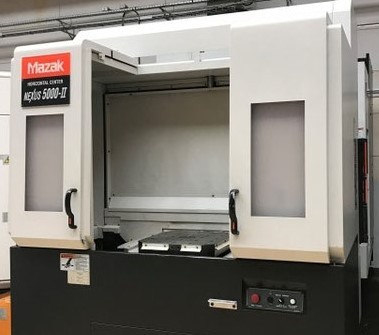

MAZAK HCN 5000 II – Year 2007

Contact us for price

Description

MAZAK HCN 5000 II – Year 2007

Nbr of pallets 2
Axis X 730 mm
Axis Y 730 mm
Axis Z 740 mm
Type Horizontal
CNC MATRIX

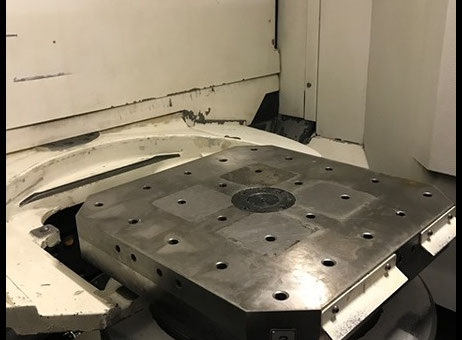

Palette length 500 mm
Palette width 500 mm
Max. part weight 700 kg
Number of tool pockets 40
Spindle taper CAT40
Spindle rotation speed 18000 rpm
Spindle motor power 29.8 kW

Table dimensions 500x500mm
X axis stroke 730mm
Y-axis stroke 730mm
Z-axis stroke 740mm
Capacite Store Tool 40
CAT 40 spindle cone
Spindle speed 18000rpm
Number of pallets 2
Max weight on pallet 700kgs
40cv machine power
Watering center pin 15bars
Prepa watering center pin 70Bars
Indexing 360,000positions
Renishaw OMP 60
GOO synchro tapping, constant slope
Chip conveyor rear exit
