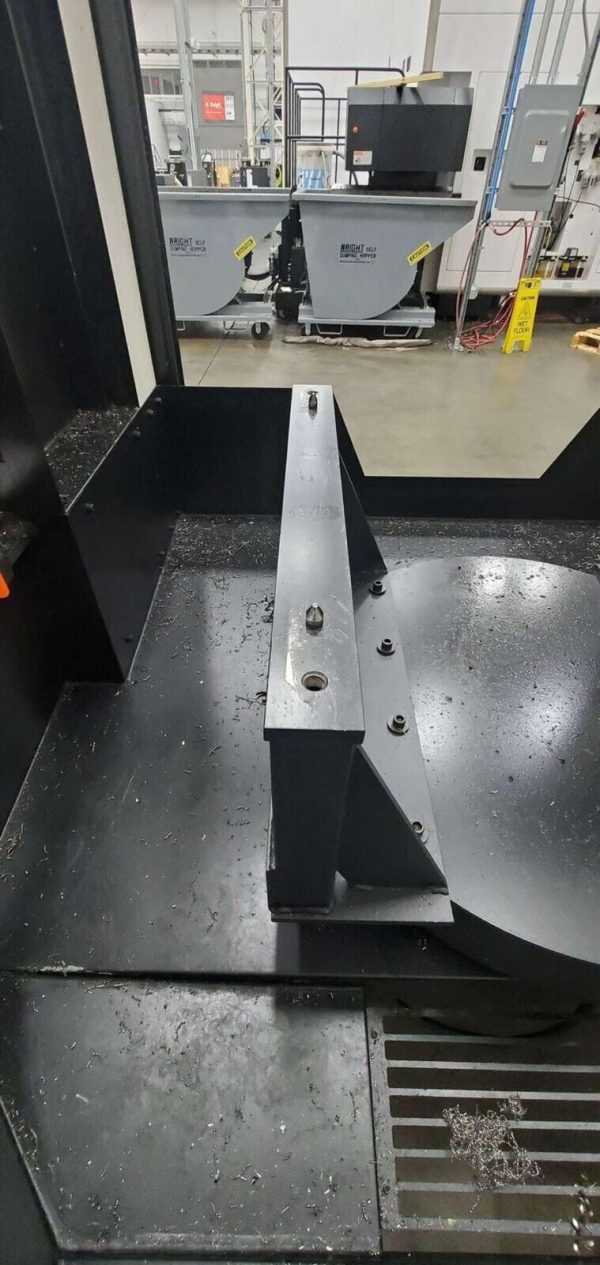

Mazak Palletech PHS800BX Pallet System – Year 2019
Note: Was uséd in a Mazak Integrex e1250
Pallet Type: 39.37″
Height From Floor Level: 129.53″
Width with door closed: 118.50″
Depth: 71.65″
Device Mass: 7165 LBS
Pallet top height: 40.94″ (When pallet down)
Max workpiece Diameter: 57.09″
Max Workpiece Height: 62.99″
Load on pallet: 5952 LBS (pallet mass included)
Door interlock switch: Lock Type
Rotational frequency:
6 min–1 (when the door is closed)
2 min–1 (when the door is open)
Index Position: 4 places (0°, 90°, 180°, 270°)
Pallet Clamp: Hydraulic taper cone (4 places)
Drive System: Inverter control geared motor
