Description

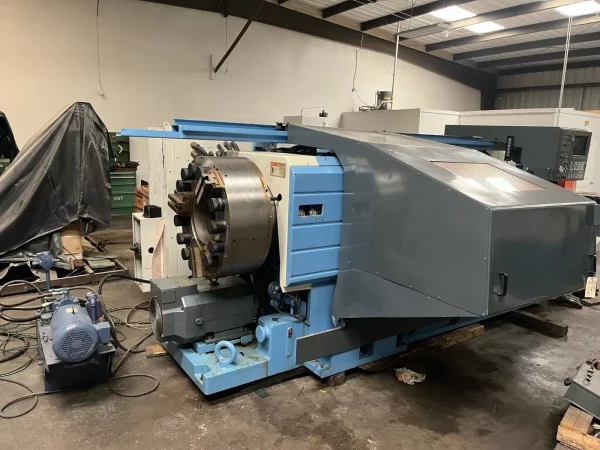

MAZAK PMC Power Master Chucker CNC Heavy-Duty Flat Bed Lathe – Year 2000
CNC Heavy-Duty Flat Bed Lathe Oil Country Pipe threader
Specification:
Yes there are two machines to choose from. Advertised price is for one machine.
Model PMC (Power Master Chucker)

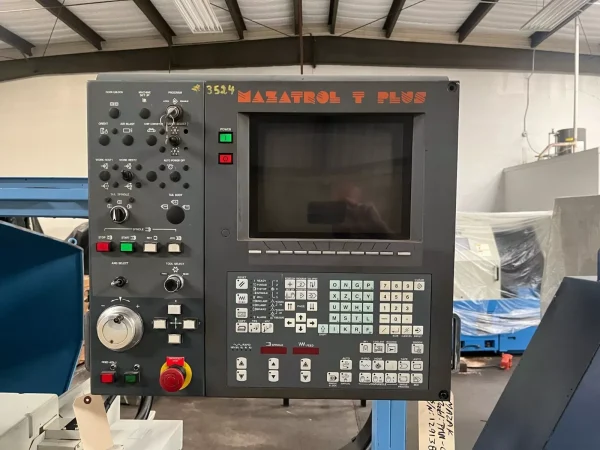

CNC Control Mazatrol T Plus
Serial number 129138
Serial number 129136
Year of manufacture 2000
Swing over bed 42”
Turning diameter 39”
Swing over gap 48”
Width of gap 20”
X-axis travel 25”
Z-axis travel 45”
Spindle bore 14”

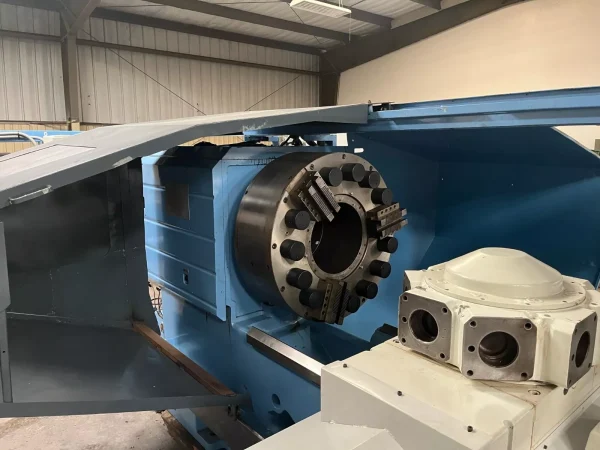

Chucks
Front Woodworth THC 34000 (14” extended stroke)
Rear Woodworth THC 34000 (14” extended stroke)
Spindle speed 0-750 rpm
Turret stations 8 stations
Tooling Yes
Chip conveyor Yes
Main motor 60 hp. 3/60/220v.
Machine weight 22,800 lbs.
