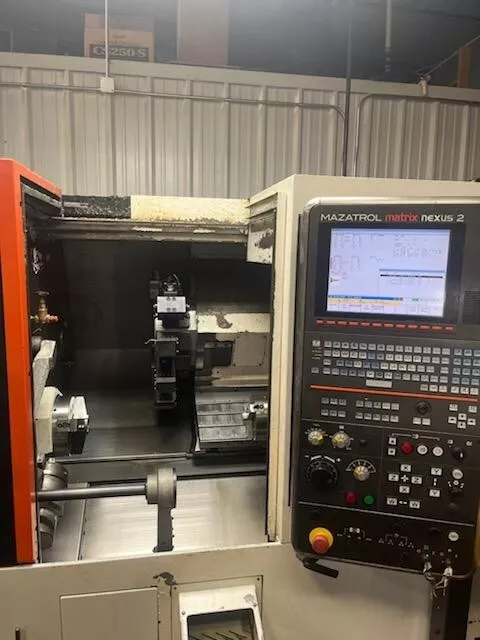

MAZAK QTN 200MSY-II CNC Turning Center – Year 2015
MAXIMUM SWING 20″
MAX TURNING DIAMETER 13.4″
MAIN SPINDLE BORE/MAX BAR CAPACITY 2.44/ 2.0
TAIL STOCK/SUB SPINDLE SUB SPINDLE
MAXIMUM SWING OVER CROSS SLIDE 13.4″
DISTANCE BETWEEN SPINDLES 20″
X-AXIS TRAVEL (X1, X2, X3) 9
Z-AXIS TRAVEL (Z1, Z2, Z3) 20
Y-AXIS TRAVEL (Y1, Y2, Y3) 4
MAIN SPINDLE CHUCK SIZE 8″
MAIN SPINDLE CHUCK TYPE HYDRAULIC
MAIN SPINDLE BORE DIAMETER 2.44″
MAIN SPINDLE MAXIMUM BAR WORK 2″
MAIN SPINDLE SPEED 4,500 RPM
MAIN SPINDLE HORSEPOWER (CONT. /30 MINS) 20
SUB SPINDLE/2ND SPINDLE CHUCK SIZE 6
SUB SPINDLE/2ND SPINDLE BORE SIZE 2.07
SUB SPINDLE/2ND SPINDLE CHUCK TYPE HYDRAULIC
SUB SPINDLE/2ND SPINDLE SPEED 4,500 RPM
SUB SPINDLE/2ND SPINDLE HORSEPOWER (CONT. /30 MINS) 10

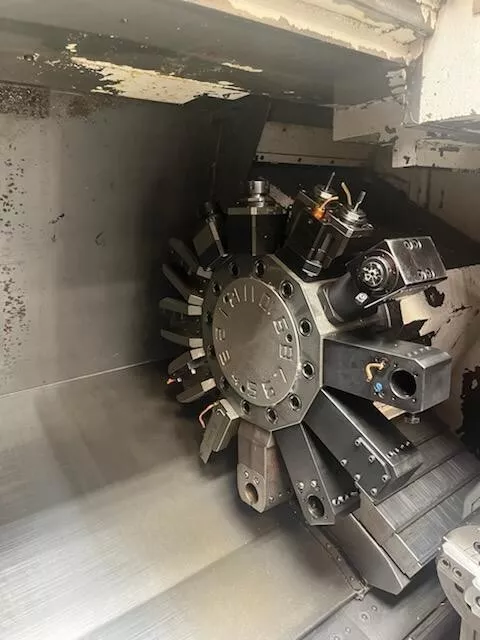

TURRET TOOL POSITIONS 1, 2 12
TURRET ROTARY TOOL SPINDLE SPEED 1, 2 4500
TURRET ROTARY TOOL HORSE POWER 1, 2 5

EQUIPPED WITH:
*BAR FEEDER NOT INCLUDED IN SALE*
PARTS CATCHER
CHIP CONVEYOR
TOOL EYE AUTOMATIC FRONT SPINDLE
NUMBER OF AVAILABLE LIVE TOOL HOLDERS- 2
CONTROL- CNC (MAZATROL MATRIX NEXUS II)
