Description

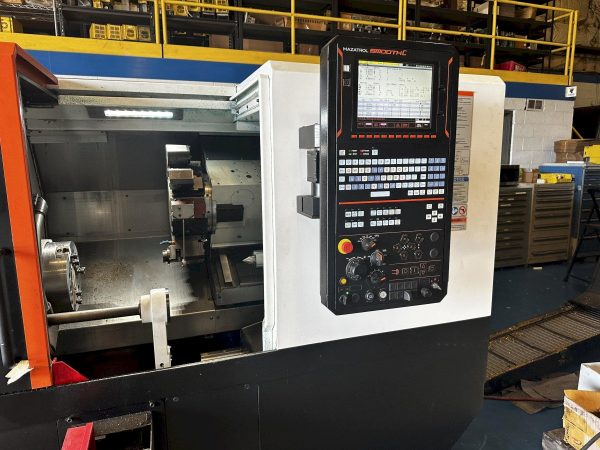

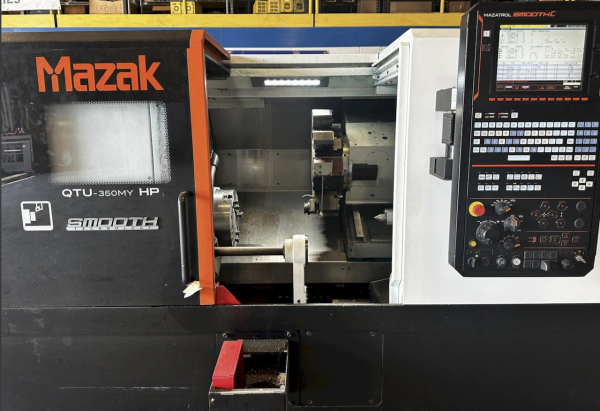

Mazak QTU-350 MY CNC Turning Center – Year 2020
Condition:used
Year:2020
Machine control:Mazatrol SmoothC Control
Chuck type:10″ 3 Jaw Hydraulic Chuck
Maximum swing:29.5″
Maximum cutting diameter:16.54″
Maximum cutting length:23.8″
Distance between spindles:24″
X-axis travel:8.5″
Y-axis travel:+/- 2.0″
Z-axis travel:23.75″
C-axis rotation:.001 Degrees Both Spindles
Spindle nose / bore / bar capacity:A2-8″ / 3.56″ / 3.0″
Spindle speeds:3,500 RPM
Spindle motor – main:40 HP
Rotary tool speed / rotary motor:6,000 RPM / 10 HP
Number of turret positions:12 Station Turret
Rapid traverse rates x, y / z:1181 ipm / 394 ipm / 1181 ipm
Machine dimensions lxwxh:104″x67″x68″ Approx.
Machine weight:14,000 lbs
Full C Axis Spindle Rotation
Live Milling / Drilling Capability
Y-Axis Capability
Chip Conveyor
Automatic Parts Catcher
Automatic Tool Eye
10″ 3 Jaw Hydraulic Chuck
213 PSI High Pressure Coolant
EIA/ISO Input Function (programmable G code)
EIA Helical Tap Cycle
EIA Pattern Cycle
EIA 3D Compensation
Automatic Pecking
2nd Auxiliary Function
Rotation
Geometric
Scaling
External-Date Input/Output
Thread
Inverse Time
Polar Coordinates Input
Comparison Stop
G54.1
Synchronized Tapping
Variable 600 Sets
Cylinder & Polar Coordinate
Pitch Error Compensation
Coolant System with Tank & Pump
(2) Live Tool Holders
All Available Manuals
**Total Cutting Hours 1,662**
