Description

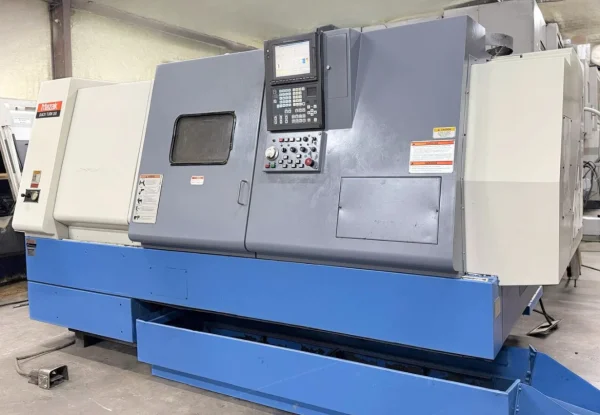

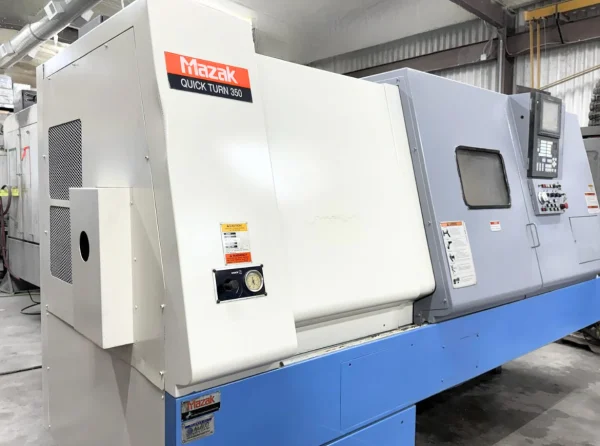

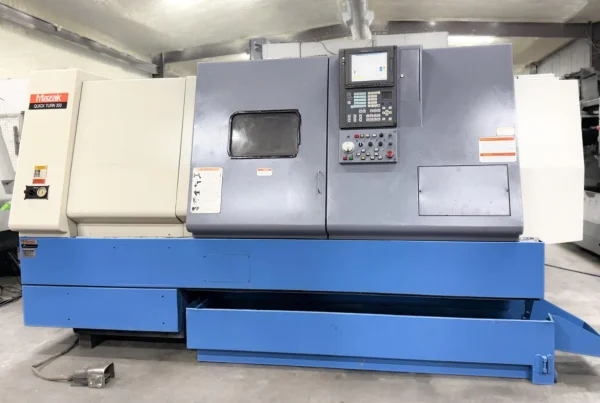

Mazak Quick Turn 350 CNC Lathe – Year 2001
EQUIPPED WITH:

MAXIMUM SWING 25.93″
MAXIMUM SWING OVER CROSS SLIDE 19.88″
MAXIMUM CUTTING DIAMETER 15.35″
MAXIMUM CUTTING LENGTH 48″ UNIVERSAL 47.6″
SPINDLE NOSE A2-8
BORE 4.4″
STANDARD BAR CAPACITY 4″
SPEED 6-2500 RPM
SPEED RANGES 1
HORSEPOWER (CONT./30MIN) 30HP/35HP
TORQUE 530 FT-LBS
TYPE OF TURRET DRUM 12D/24P
MAXIMUM NUMBER OF TOOLS 24
TOOL SIZE:
TURNING & FACING 1″X1.25″X6″
BORING BAR MAX. DIA 2.0″
TURRET INDEX TIME (SEC) 0.3/1 POS 0.67/FULL STEP
X-AXIS TRAVEL 10.63″
Z-AXIS 48″ UNIVERSAL 48.03″
X-AXIS RAPID TRAVERSE 472 IPM
Z-AXIS 48″ UNIVERSAL 787 IPM
TAILSTOCK CENTER MT #4
QUILL DIAMETER 3.94″
QUILL TRAVEL 5.12″
BODY TRAVEL (48″ UNIVERSAL) 37.8″
FLOOR SPACE (W X L) 48″ UNIVERSAL 81.3″ X 144.5″
MACHINE HEIGHT 75.2″
TOTAL MACHINE WEIGHT (48″ UNIVERSAL) 15,620 LBS

SPECIFICATIONS:

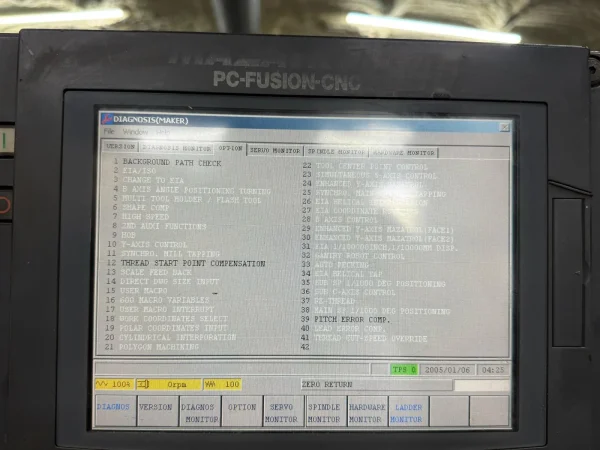

MAZATROL PC-FUSION-CNC 640T CONTROL (10.4″ COLOR LCD)
RS232C INTERFACE
BACKGROUND TOOL PATH CHECKMACHINING NAVI-MONITOR
FLOPPY DISK UNIT
AUTOMATIC TOOL SETTING SYSTEM (TOOL EYE)
(TOOL SETUP/TOOL WEAR COMPENSATION/TOOL BREAKAGE DETECTION)
HYDRAULIC UNIT/STANDARD WORKLIGHT
COMPLETE COOLANT SYSTEM
CHIP & COOLANT SPLASH GUARDING (FULL COVERAGE)
PROGRAMMABLE TAILSTOCK WITH BUILT IN LIVE CENTER (MT#4)
SPINDLE SPEED 2500 RPM (4.4″ SPINDLE BORE)
INVERTER CHIP CONVEYOR SIDE DISCHARGE FOR 48” UNIV.
15″ HYDRAULIC CHUCK
