Description

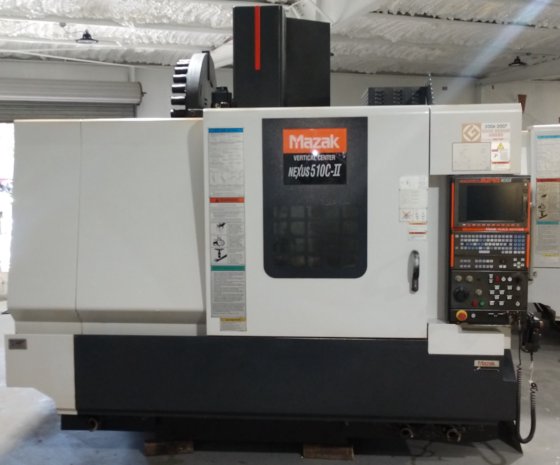

Mazak VCN 510C-II – Year 2007
CNC Vertical Machining Center
Brand Mazak
Model VCN 510C-II
Year 2007
25 HP Spindle 30 Position Side Arm ATC
1,417 IPM Rapids
Chip Auger
Chip Conveyor
Tool Presetter
Table size:51.18” X 21.65”
Table load capacity:2,646 LBS
X-axis travel:41.3”
Y-axis travel:20”
Z-axis travel:20”
Spindle taper:CAT 40
Spindle speed:12,000 RPM
Spindle motor 10/30/ cont. min:25/20/10 HP
Dist. from table top to spindle nose:5.9” to 25.98”
Tool change time:1.3 Seconds
Rapid traverse rates:1,417 IPM
Machine dimensions (lxwxh):113” X 111” X 113”
Machine weight:15,180 LBS.
