Description

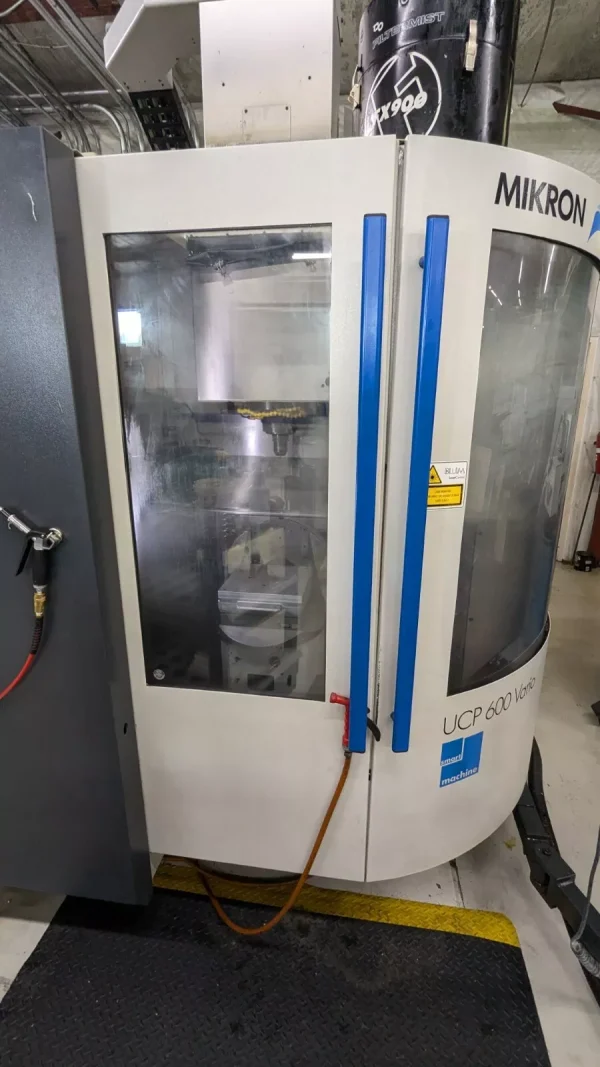

Mikron UCP 600 Vario – Year 2006
CNC 5-Axis Vertical Machining Center
2006/2008 +GF+ Mikron UCP 600 Vario
Full 5 Axis simultaneous machining center with 7 pallet automation
The machine has had professional preventative maintenance every year since brand new.
See picture of last PM report. It was purchased from the original owner end of last year on speculation.
We decided to take the business in another direction and now need the floor space.
20,000 rpm 40HP HSK63A steptec spindle
24x18x18 in travels
441lb Max workpiece weight
17,000LB machine weight with pallet changer
Machine base polymer granite
866 IPM rapid
590 IPM feed
30 tool ATC
System 3R Dynafix pallet
Equipped with:
X/Y/Z glass scales
B/C rotary encoders
3D touch probe
Blum laser tool presetter
1000psi coolant through spindle
172 gallon band filter coolant tank

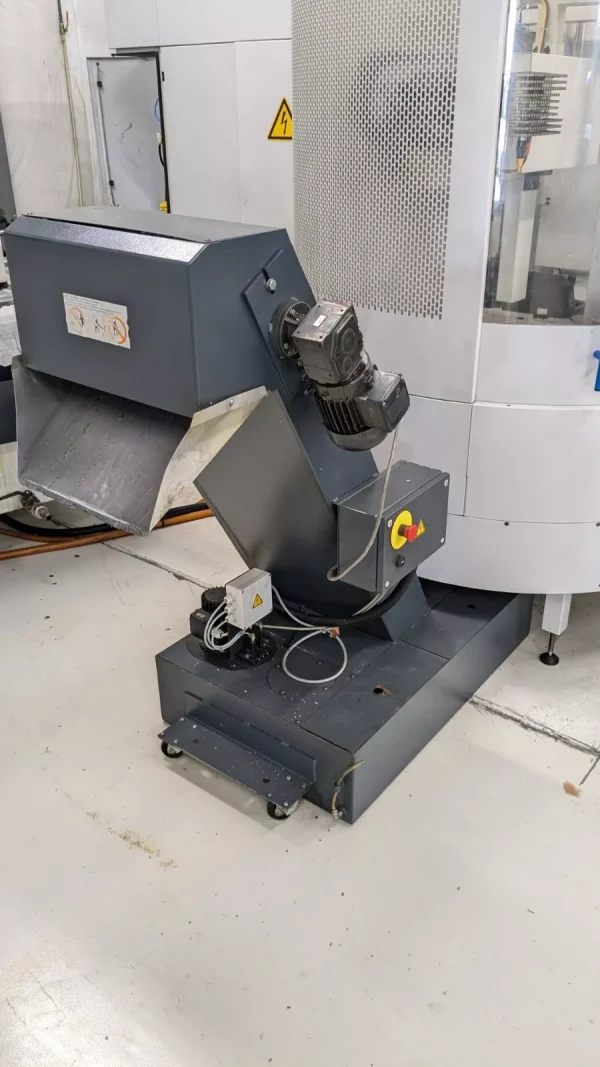

High capacity chip conveyor
MQL system
Oil mist extractor
External spindle chiller
Other items included with the machine:

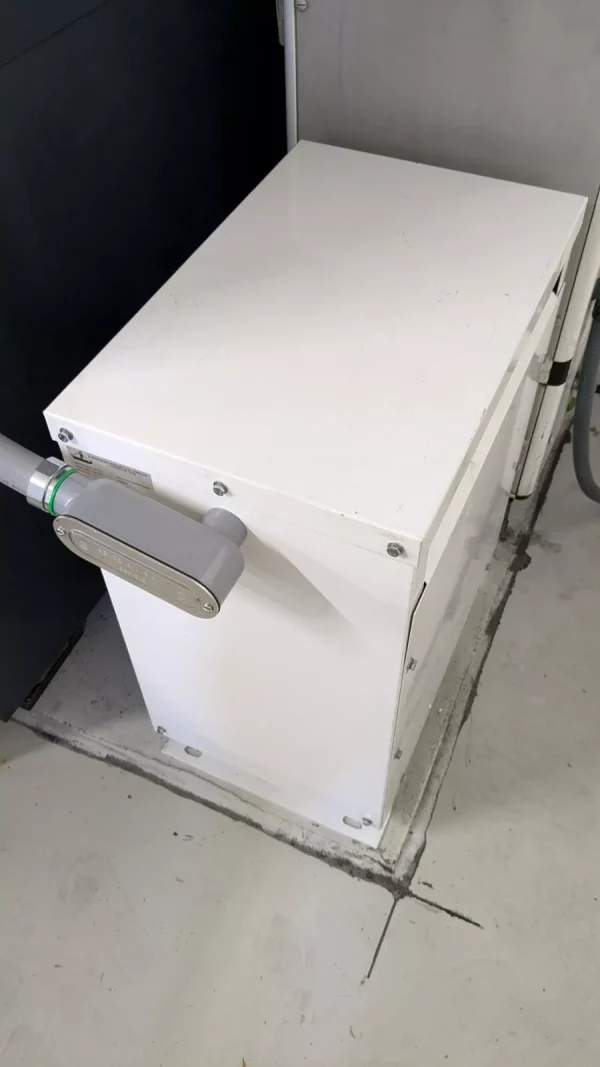

400V transformer
Blum calibration tool
All documents and parameter backups
