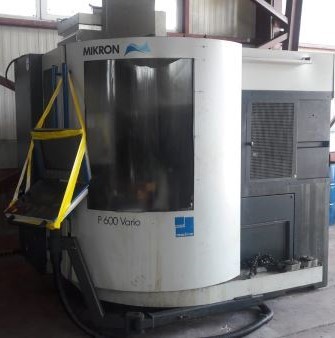

MIKRON UCP 600 Vario – Year 2005

Contact us for price

Categories: ,

Description

MIKRON UCP 600 Vario – Year 2005
5 axes / 20000 rev / 650 x 450 x 450/7 pallets

B Axis (Rotary) ………………………………… +45 / -101 RTT -CHART

C Axis (Rotary) ……………………………………… …………. nx 360 degrees

Feed Speed ​​X / Y / Z ………………………………. 590 IPM (15 m / min)

Fast Speed ​​X / Y / Z …………………………….. 866 IPM (22 m / min)

Fast Speed ​​B Axis (Rotary) ………………… 80 RPM

Fast Speed ​​C Axis (A) (Rotary) …………… 200 RPM

study desk

Clamping Surface …………………………. 17.7 “(450 mm) Diameter

Maximum workpiece weight ………….. 200 kg (441 lbs)

Water cooled

Direct measuring system Heidenhain rotary encoders

TOOL CHANGER

Automatic tool changer ……………………………… 30 positions

PALLET SYSTEM

Palet Magazine ………………………………………………… .. 16 Pce.

Pallet Version …………………………………………………… System 3 R

Macro Magnum 156

16 cavities for Workpiece Diameter: 190 mm

8 cavities for workpieces Diameter: from 190 mm to 350 mm

Tailstock Optional:

Centerless Maximum Workpiece:

Diameter: 350mmx350mm included. Automatic to the pallet.

Diameter: 350mmx450mm included. palette

WEIGHT

7.700 kg

Machine base ………………….. Polymer concrete

STEPTEC SWITZERLAND SPINDLE

Shaft taper ………………………………………… .. HSK-A63

Spindle speed ………………………………………… 20,000 rpm.

Spindle power 40% ED …………………………….. 40.2 HP (30 kW)

Spindle torque 40% ED …………………………. 67.1 Ft / Lb (91 Nm)

EQUIPPED WITH:

Flood coolant

Direct measuring system Heidenhain glass scales X / Y / Z, Encoder B, C
