Mino Slitting Line Cut-to-Length and Cutting Line – Year 1984

Contact us for price

Description

Mino Slitting Line Cut-to-Length and Cutting Line – Year 1984
Disassembled longitudinal cutting line consisting of:
30-ton loading cradle
Step decoiler 30,000 kg. Ø int coils 508-760 max width 1800
Introductory group: pre-spreader,telescopic table, 5-roll straightener, end shear
Circular blade shear: Ø shaft 200 mm. minimum thickness 0.40 – max 3.00 max cuts on 3.00 mm. 14
Motorized burr crusher roller
Burr winder
Movable strip tensioning bridle
Halving shear
Cantilevered winding reel capacity 20,000 kg.
Unloading cradle
4-arm reel
Equipment

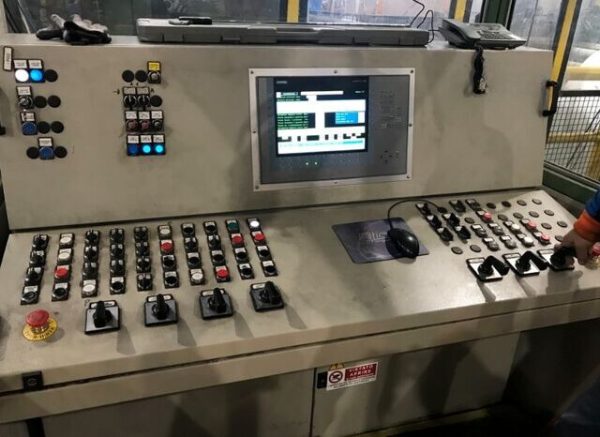

Electrical panels with DC drives
Foundation drawings actualized 2022. Electrical diagrams, software backups.
