Description

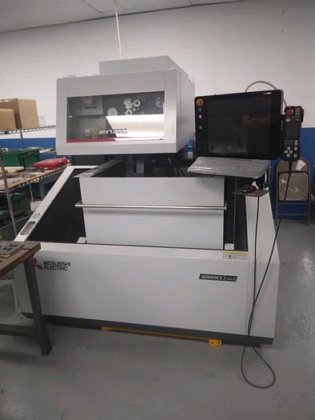

Mitsubishi MV1200S – Year 2019
CNC Wire EDM
MV1200-S ADVANCE TYPE M800
Reduce small parts manufacturing costs with the highly-precise MV1200-S Advance M800 Mitsubishi Wire EDM. Featuring improved machine construction, auto-threading, internal machine communication and enhanced power supply technology, this innovative wire EDM machine includes a non-contact Cylindrical Drive System on the X & Y axis drives for reliability and Mitsubishi M800 series control with 19-inch touchscreen for easy operating.
Mitsubishi MV1200S Machine SPECIFICATIONS
Machine Travels X x Y x Z: in (mm): 15.7 x 11.8 x 8.7 (400 x 300 x 220)
Maximum Workpiece Size W x D x H: in (mm): 31.9 x 27.6 x 8.5 (810 x 700 x 215)
Max. Submerged Workpiece Weight: lb (kg): 1102 (500)
Table Dimensions: in (mm): 25.2 x 17.7 (640 x 450)
U/V Travels (from center): in (mm): ±2.4 x ±2.4 (±60 x ±60)
Taper Angle @ Thickness: in (mm): 15 deg.@ 8.0 (15 deg.@ 200)
Wide Angle Taper (Optional Guides Required): 45 deg. @ 1.8″ 45mm (No AT Possible)
Table Rapid Feed Speed: in/min (mm/min): 51.2 (1300)
Power Supply: V350-V
Minimum Drive Unit / Resolution: 0.000002 / 2 µin ( 0.00005 / 50nm)
User Program Storage [Hard Disk Size]: 1 GB [32 GB CFAST Card Size]
Wire Diameter Possible: in (mm): 0.004~0.012 (0.1~0.3)
Minimum Start Hole Diameter: in (mm): 0.02 (0.5)
Max. Wire Spool size STD [optional]: lb (kg): 22 [44] (10 [20])
Filters / Type: 2 pc. / Paper Cartridge
Filter Tank Capacity: gal (L): 145 (550)
Machine System Dimensions W x D: in (mm): 79.7 x 106.4 (2025 x 2702)
Machine Installed Height: in (mm): 79.3 (2015)
Machine System Weight: lb (kg): 5952 (2700)
Fluid System Weight: lb (kg): Included with machine
Power Requirements [KVA]: 200-230V [13.5] Built in AVR
Compressed Air Requirements: 2.7 cu.ft./min. @ 71~100 psi
OVERVIEW/FEATURES
– V350-V AEII Power Supply with Digital Spark Control
– DMX-S (Digital Matrix Sensor) Shapes each spark reducing electrode wear
– Non-contact, Zero Back-Lash Linear Shaft Drive System XY (UV-Z use ball screws)
– All Fiber Optic servo control (4X faster internal communication speed)
– Submerged Machining to 8.7″ Deep
– Automatic Fluid Level Control
– Manual Vertical Machine Tank door operation
– Three Piece Hardened 3-Sided Stainless Work Table
– Fine Grain “Dianite” Casting Material
– Split Axis Construction (Table Moves in X, Column Moves in Y)
– Windows 8 Embedded Operating System
– CFAST Compact Flash Card memory with 1GB user program storage
– Fully-Automatic Rough Machining Control covers PM, CM-R and EM functions
– Program Input Methods: Keyboard, USB Flash Memory, and Ethernet with FTP standard
– DC-Servo (Closed Loop) Torque Control Wire Tensioning System
– Linear Motion Guide Ways
– All-Axes Absolute Control System
– Linear Glass Scale Feedback (X-Y- Axes)
– Optical Rotary Encoder Feedback (UV-Z-Axis)
– Scrap Wire Processor (Chopper) (Optional)
– New 14″ AT Annealing Length Improves Threading Reliability
– Inverter Controlled 16-Step Programmable Flushing
– Full Time AEII (Anti-Electrolysis) Power Supply Protection
– Dielectric Fluid Chiller Standard
– Auto-Oiler Lubrication System
